Installation Instructions

GPSMAP 3006C / 3010C / GPS 17 Installation Guide
Marine A/V (Audio/Video) Cable
The GPSMAP 3006C/3010C Marine A/V (Audio/Video) 17-pin cable allows input of NTSC (National Television System Committee) /PAL
(Phase Alternate Line) composite video sources, VGA resolution PC monitor output, and future expansion for audio output. Marine A/V
inputs are only available on the MFD to which they are attached and will not transmit over the Garmin Marine Network. A pinout of the cable
is provided below.
VIDEO 1 and VIDEO 2 Inputs (RCA connectors) allow you to input two separate NTSC/PAL compatible video devices, such as VCR,
DVD, TV, or a video camera. The MFD can display one video input at a time or alternate between the two (see owner’s manual). Sound
from a video source must be attached to a separate stereo/audio system. The video output from video device attaches to the Video 1 (Black
Cable) or Video 2 (Gray Cable) RCA connectors.
PC Monitor VGA Output (HD 15-pin connector) for remote viewing of the MFD display on a computer monitor. The remote monitor
must be at least VGA resolution and have multi-sync capability.
Audio Out wires are reserved for future audio expansion in a closed-cabin or helm environment and do not need to be connected at this
time.

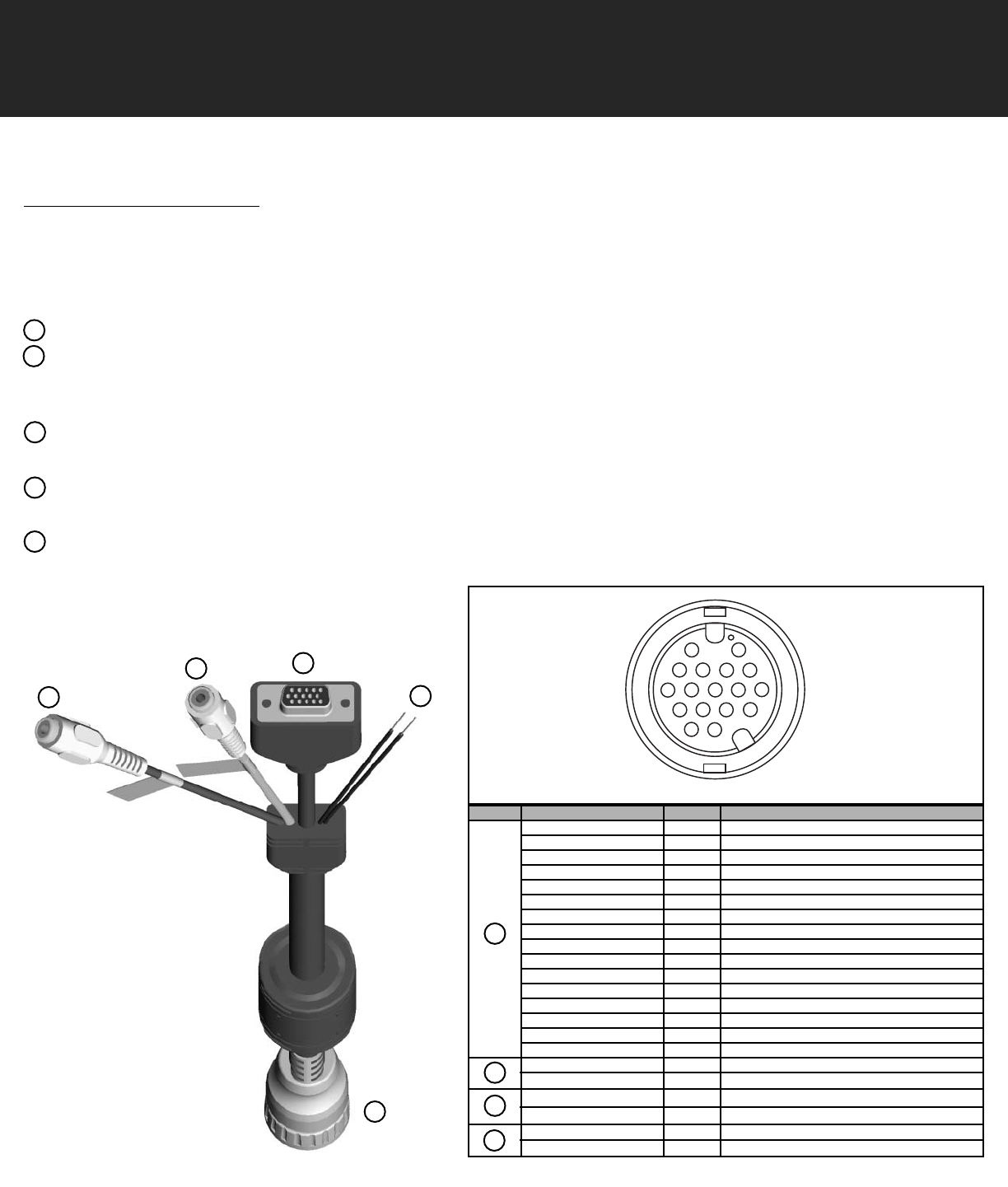

Marine A/V (Audio/Video) 17-pin cable attaches to the back of the MFD.
1
3
4
1
3
4
5
5
2
2
IMAGE CONNECTOR PIN # FUNCTION
HD-15 PIN 1 1 VGA, ANALOG-RED
HD-15 PIN 2 4 VGA, ANALOG-GREEN
HD-15 PIN 3 3 VGA, ANALOG-BLUE
HD-15 PIN 4
HD-15 PIN 5 13 VGA, ANALOG-GROUND
HD-15 PIN 6 8 VGA, ANALOG-RED, GND
HD-15 PIN 7 8 VGA, ANALOG-GREEN, GND
HD-15 PIN 8 8 VGA, ANALOG-BLUE, GND
HD-15 PIN 9
HD-15 PIN 10 13 VGA, SYNC-GROUND
HD-15 PIN 11
HD-15 PIN 12
HD-15 PIN 13 7 VGA, H-SYNC
HD-15 PIN 14 12 VGA, V-SYNC
HD-15 PIN 15
HD-15 SHELL 9 VGA, OVERALL SHIELD
RCA-1 CENTER 2 VIDEO 1 IN (BLACK JACKET)
RCA-1 OUTER 6 VIDEO 1 IN, GROUND
RCA-2 CENTER 11 VIDEO 2 IN (GRAY JACKET)
RCA-2 OUTER 15 VIDEO 2 IN, GROUND
WIRE- BLACK 5 RESERVED FOR FUTURE AUDIO EXPANSION
WIRE- STRIPED 10 RESERVED FOR FUTURE AUDIO EXPANSION
2
15
11 10
6
5
17
16
14
13
12
1
9
43
8
7
Cable End View
Marine A/V Cable
3
1
2
4
8
