Installation Instructions

GPSMAP 3006C / 3010C / GPS 17 Installation Guide
WIRE
COLOR
BLACK
BROWN
RED
BLUE
GARMIN
GPSMAP 3006C/3010C
DB-9 PIN
NUMBERS
+
-
BATTERY
10-35 VOLTS DC
5A
FUSE
PIN 5: GROUND (SG)
PIN 3:TRANSMIT (TxD)
PIN 2: RECEIVE (RxD)
1
4
6
7
8
9
* Note: DB-9 connectors normally have pin numbers printed next to each pin.
DB-9 SERIAL
PC CONNECTOR*
>
>
2
3
5
End View

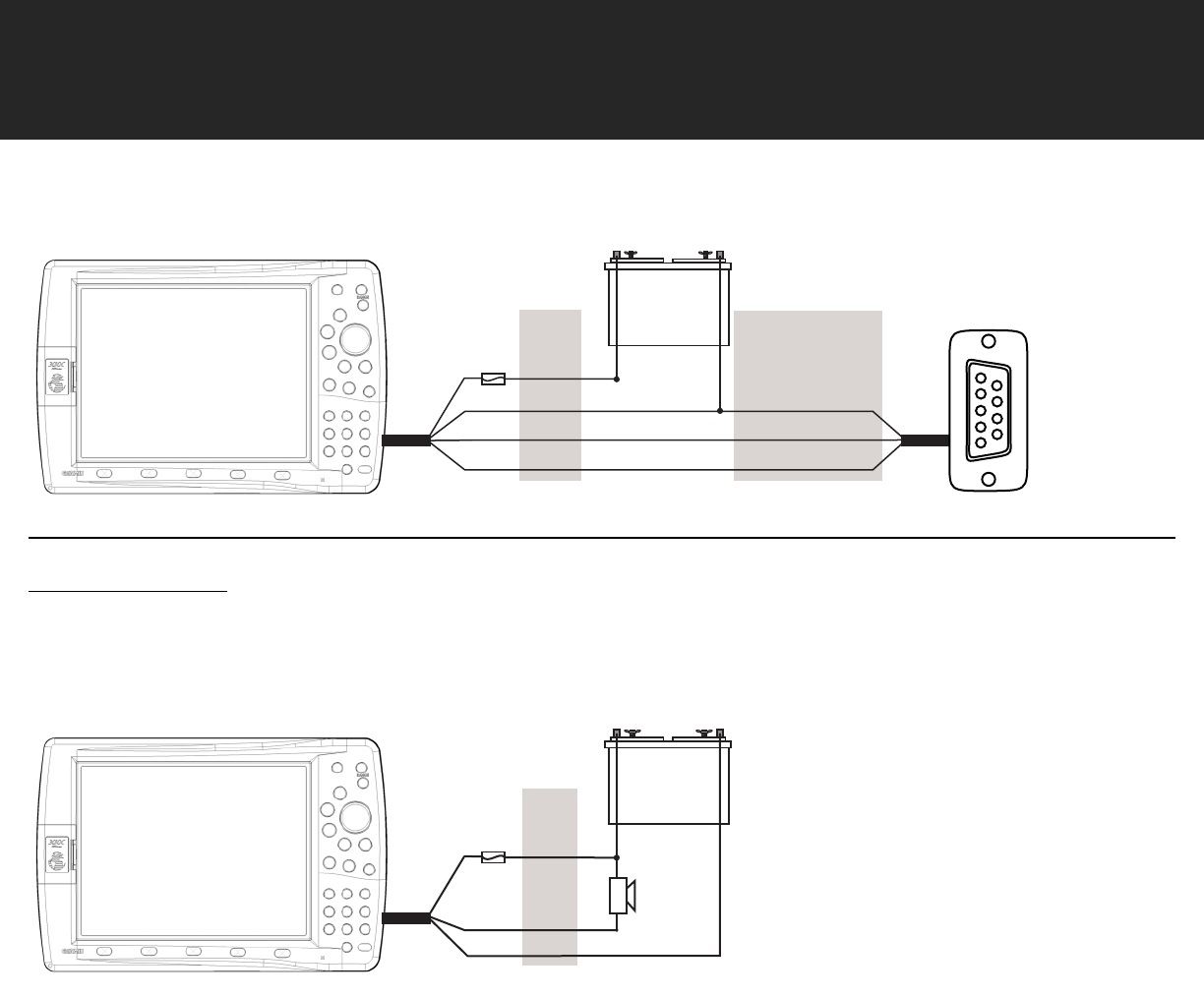

Optional Alarm Wiring
The GPSMAP 3006C/3010C has an alarm circuit that may be used with a lamp, a horn, or both to alert you when the unit displays a mes-
sage. The alarm circuit pulls low when an alarm sounds. The alarm does not have to be wired for the unit to function. Maximum current is
100 milliamps. A switch or relay may be used to select between visual and audible alerts, if required.
WIRE
COLOR
BLACK
YELLOW
RED
GARMIN
GPSMAP 3006C/3010C
+
-
BATTERY
10-35 VOL TS DC
5A
FUSE
HORN OR
LAMP
7
