Installation Instructions

GPSMAP 3006C / 3010C / GPS 17 Installation Guide
Documentation concerning NMEA & RTCM formats
and sentences are available for purchase from:
National Marine Electronics Association (NMEA)
Seven Riggs Avenue
Severna Park, MD 21146
U.S.A.
410-975-9425
410-975-9450 FAX
www.nmea.org
PIN # COLOR FUNCTION
1 N/C
2 N/C
3 N/C
4 WHITE/BROWN PORT 3 DATA IN
5 WHITE/BLUE PORT 3 DATA OUT
6 ORANGE ACCESSORY ON
7 N/C
8 N/C
9 VIOLET PORT 2 DATA IN
10 GRAY PORT 2 DATA OUT
11 YELLOW ALARM LOW
12 N/C
13 WHITE PORT 4 DATA IN
14 GREEN PORT 4 DATA OUT
15 RED DC POWER INPUT
16 BROWN PORT 1 DATA IN
17 BLUE PORT 1 DATA OUT
18 BLACK GROUND (POWER/DATA)
2
15
18
11 10
6
5
17
16
14 13
12
1
9
43
8
7

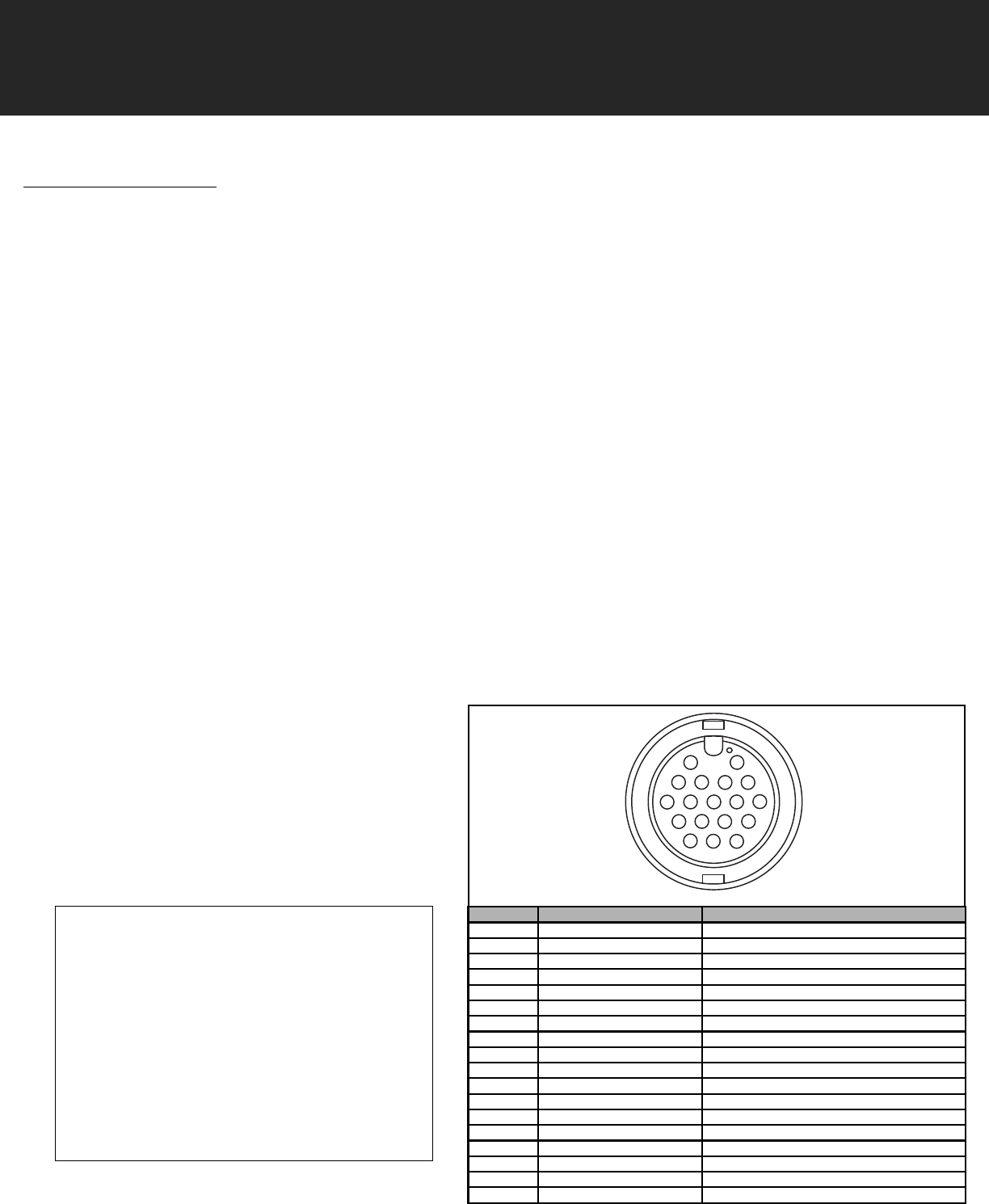

Cable End View
The unit also includes NMEA input with support for the
WPL sentence, DSC, and sonar NMEA input with support
for the DPT (Depth), MTW (Water Temp) and VHW (Water
Speed & Heading) sentences. The unit interface must be set
to NMEA In/NMEA Out (see owner’s manual).
Power/Data(NMEA) Cable
Power/NMEA Cable Wiring
There are several wiring diagrams on the following pages for your convenience. The fi rst is a simple diagram showing the GPSMAP 3006C/
3010C MFD (using the 18-pin Power/NMEA wiring harness) and the GPS 17. If two or more GPSMAP 3006C/3010C units are installed and
networked, only one GPS 17 antenna needs to be installed. Next are wiring diagram examples showing the GPSMAP 3006C/3010C (using
the 18-pin Power/NMEA wiring harness) interfacing with a variety of different equipment. Refer to the wiring diagram that will best suite
your needs. For 3rd party devices, be sure to refer to the wiring guidelines included with that equipment. For extra lengths of wire, 22 AWG
(18 AWG for the RED and BLACK wires), shielded, twisted-pair wiring is recommended. We advise soldering all connections and sealing the
connection with heat shrink tubing. If networking two or more MFDs, NMEA devices only need to be attached to one MFD on the network. A
pinout of the cable is provided below.
The GPSMAP 3006C/3010C Power/NMEA cable has four I/O (Input/Output) ports.
Ports 1 and 2 - allow you to communicate with other NMEA compliant devices, such as VHF radios, NMEA instruments, autopilots, or
PCs (Port 1 only). You may input one NMEA device to each port, and output in parallel to three NMEA devices per port.
Port 3 - reserved for use with Garmin Sounder Modules (GSD 20).
Port 4 - reserved for use with the Garmin GPS 17 (or equivalent) GPS/WAAS antenna.
The following formats are supported for connection of external devices: Garmin proprietary Sonar Module, and NMEA 0183 version 3.01.
The following are the sentences for NMEA 0183, version 3.01 and later output:
Approved sentences— GPBWC, GPRMC, GPGGA, GPGSA, GPGSV, GPGLL, GPBOD, GPRMB, GPRTE, GPVTG, GPWPL, and GPXTE.
Garmin Proprietary sentences— PGRME, PGRMM, PGRMZ, and PSLIB.
