Installation Instructions

GPSMAP 3006C / 3010C / GPS 17 Installation Guide
Wiring and Cables
The GPSMAP 3006C/3010C comes with an 18-pin Power/NMEA and a 17-pin Marine A/V (Audio/Video). Optional Garmin Marine
Network components use specialized Garmin Network Cables. For some installations, it may be necessary to drill 1.25” (31.7mm) holes to
route the connector end of the cables. Garmin rubber grommets are provided to cover the installation holes (see below). Wiring and cabling
instructions may be found on the following pages. If you experience diffi culty installing the unit, please contact an installation professional in
your area.
Installing Cable Grommets
Included with the GPSMAP 3006C/3010C are two rubber grommets which may be used to cover cable installation holes. The grommets
may not be needed in some installations. The grommets do NOT create a waterproof seal. You may choose to apply a marine sealant after
installation to weatherproof around the grommet and cable. Additional grommets may be purchased from your Garmin dealer or direct from
Garmin. It is recommended that the system be tested before installing the grommets.
Tools
Drill and 1.25” (31.7mm) Paddle Bit
Pencil
Utility Knife
Marine Sealant (Optional)
Installing the Cable Grommet:
1. Mark the location with the pencil where the cable Power/NMEA, Marine A/V, or Marine Network Cable is to route through.
2. Using a 1.25” (31.7mm) Paddle Bit, drill the installation hole.
3. Refer to the diagram below for trimming instructions. Carefully trim the cable hole as needed.
4. Route the cable as needed to the unit.
5. Spread the grommet apart at the split and place around the cable (see below).
6. Firmly push the grommet into the installation hole until it is seated. If desired, you may apply marine sealant as needed to weatherproof the
grommet and cable.

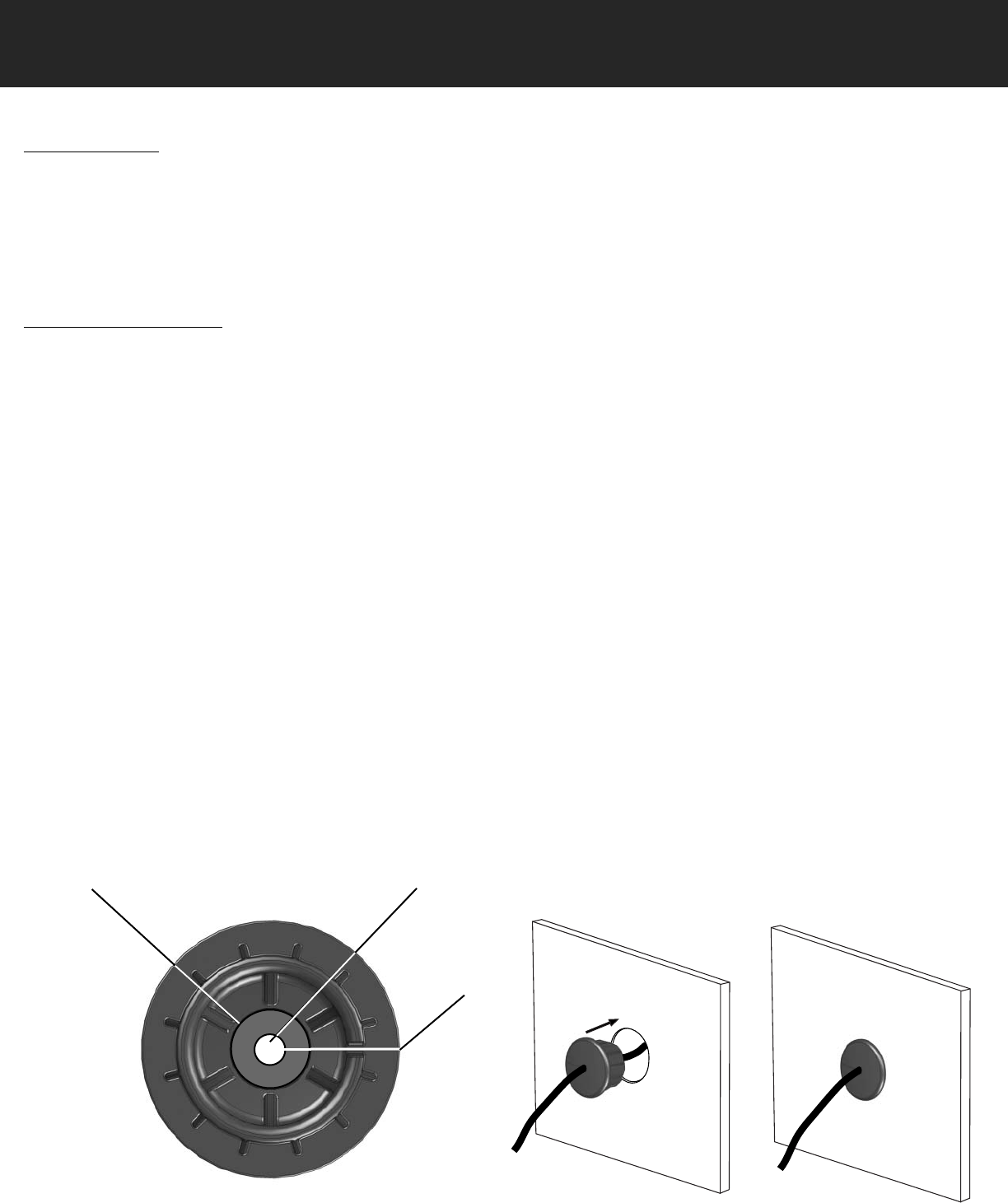

Inside View of Grommet
Split
Trim out to this line
for the A/V Cable
Use this hole (no trim) for the Power/
NMEA, Marine Network, or GPS 17 Cable
Installing the Grommet
4
