Installation Instructions

230mm
208mm
GPSMAP 2010/2010C/3010C
CUT MOUNTING SURFACE
ALONG INSIDE OF THIS LINE
UNIT OUTLINE
DRILL A 3/8" HOLE.
BEGIN CUTTING HERE
TRIM TEMPLATE ALONG THIS LINE TO AID FITTING
Be very careful when cutting this hole,
there is only a small amount of clearance
between the unit and the Mounting Hole.
Flush Mounting the GPS
1. Trim the Flush Mount Template and tape in the desired location.
2. Using the Center Punch, indent the center of each Mounting Hole location.
3. Using an 1/8” (3mm) drill bit, drill the four Mounting Holes. (Drilling the mounting
holes before cutting the hole for the unit will allow for an easier installation.)
4. Using a 3/8” (6mm) drill bit, drill a hole for a location to begin cutting the mounting
surface.
5. Using the Jig Saw, cut the mounting surface along the inside of the dashed line
indicated on the template. Be very careful when cutting this hole, there is only a small
amount of clearance between the case molding and the Mounting Holes.

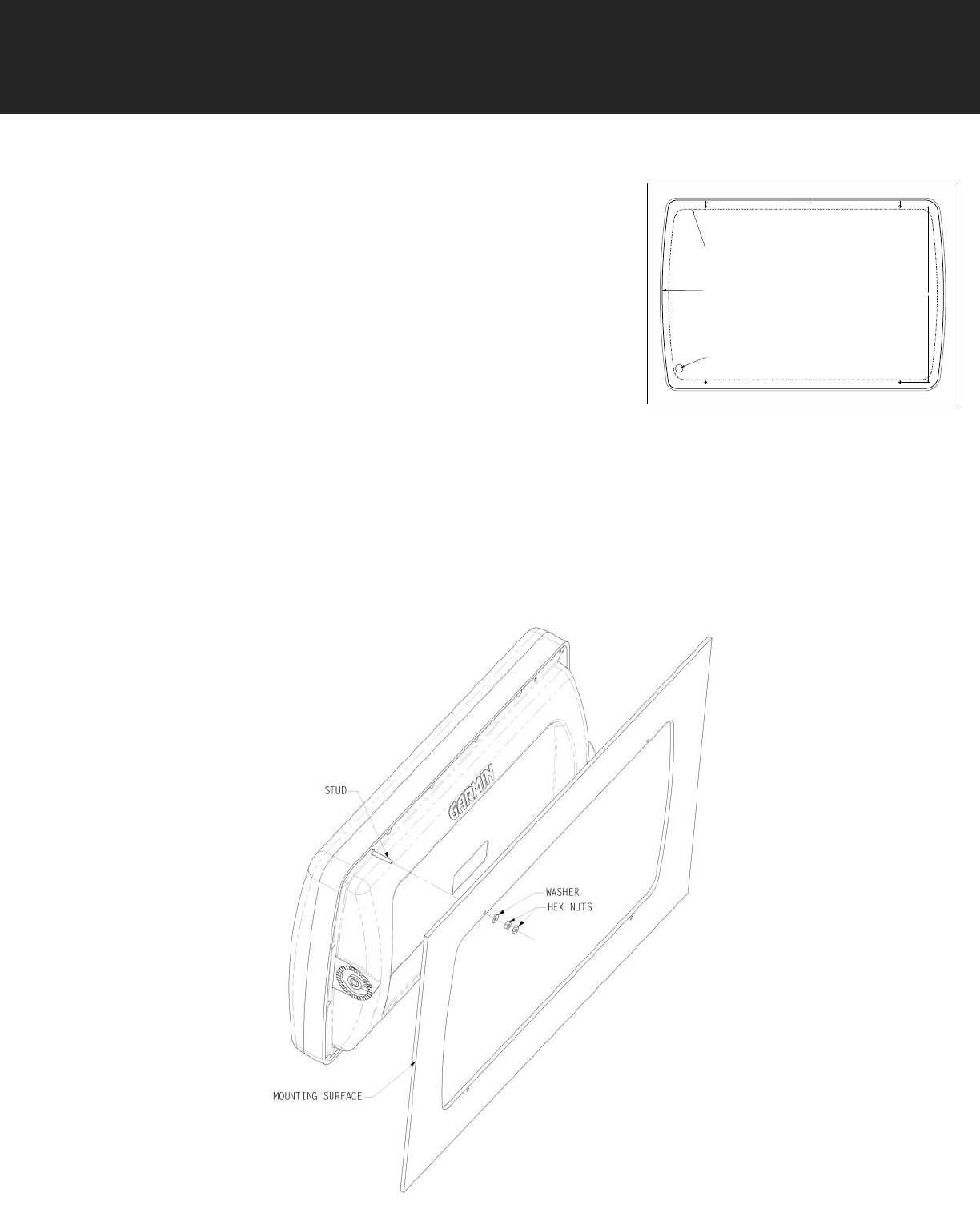

6. Install the four Mounting Studs into unit by screwing the shorter, threaded section
into the back of the unit. Use a 1/16” (2mm) Allen Wrench to tighten the Mounting Studs
until the stop contacts the case. Be careful not to overtighten as this may damage the
Mounting Stud! The studs have a reusable thread-locking patch pre-applied from the factory.
7. Place the unit in position in the cut out of the mounting surface.
8. Place washers over the Mounting Studs, then thread on one Hex Nut per Mounting Stud.
Tighten all four until the unit is snug against the mounting surface.
Install and tighten the second Hex Nut on all four Mounting Studs to lock the first one
in place.
Flush Mount Template
Flush Mounting the GPSMAP 3006C/3010C:
1. Trim the Flush Mount Template and tape in the desired location.
2. Using the Center Punch, indent the center of each Mounting Hole location.
3. Using an 1/8” (3mm) drill bit, drill the four Mounting Holes. (Drilling the mounting holes
before cutting the hole for the unit will allow for an easier installation.)
4. Using a 3/8” (6mm) drill bit, drill a hole for a location to begin cutting the mounting
surface.
5. Using the Jig Saw, cut the mounting surface along the inside of the dashed line indicated
on the template. Be very careful when cutting this hole, there is only a small
amount of clearance between the case molding and the Mounting Holes.
6. Install the four Mounting Studs into unit by screwing the shorter, threaded section into
the back of the unit. Use a 1/16” (2mm) Allen Wrench to tighten the Mounting Studs
until the stop contacts the case. Be careful not to overtighten as this may damage the
Mounting Stud! The studs have a reusable thread-locking patch pre-applied from the
factory.
7. Place the unit in position in the cut out of the mounting surface.
8. Place washers over the Mounting Studs, then thread on one Hex Nut per Mounting Stud.
Tighten all four until the unit is snug against the mounting surface. Install and tighten the
second Hex Nut on all four Mounting Studs to lock the fi rst one in place.
GPSMAP 3006C / 3010C / GPS 17 Installation Guide
2
