Installation Instructions

GPSMAP 3006C / 3010C/ GPS 17 Installation Guide
Surface Mount
Tools
Drill and Drill Bit
Screw Driver
Pencil
• Mounting Hardware (Fasteners) Not Included. Mounting
holes are 5/16” (7.9mm) in diameter.

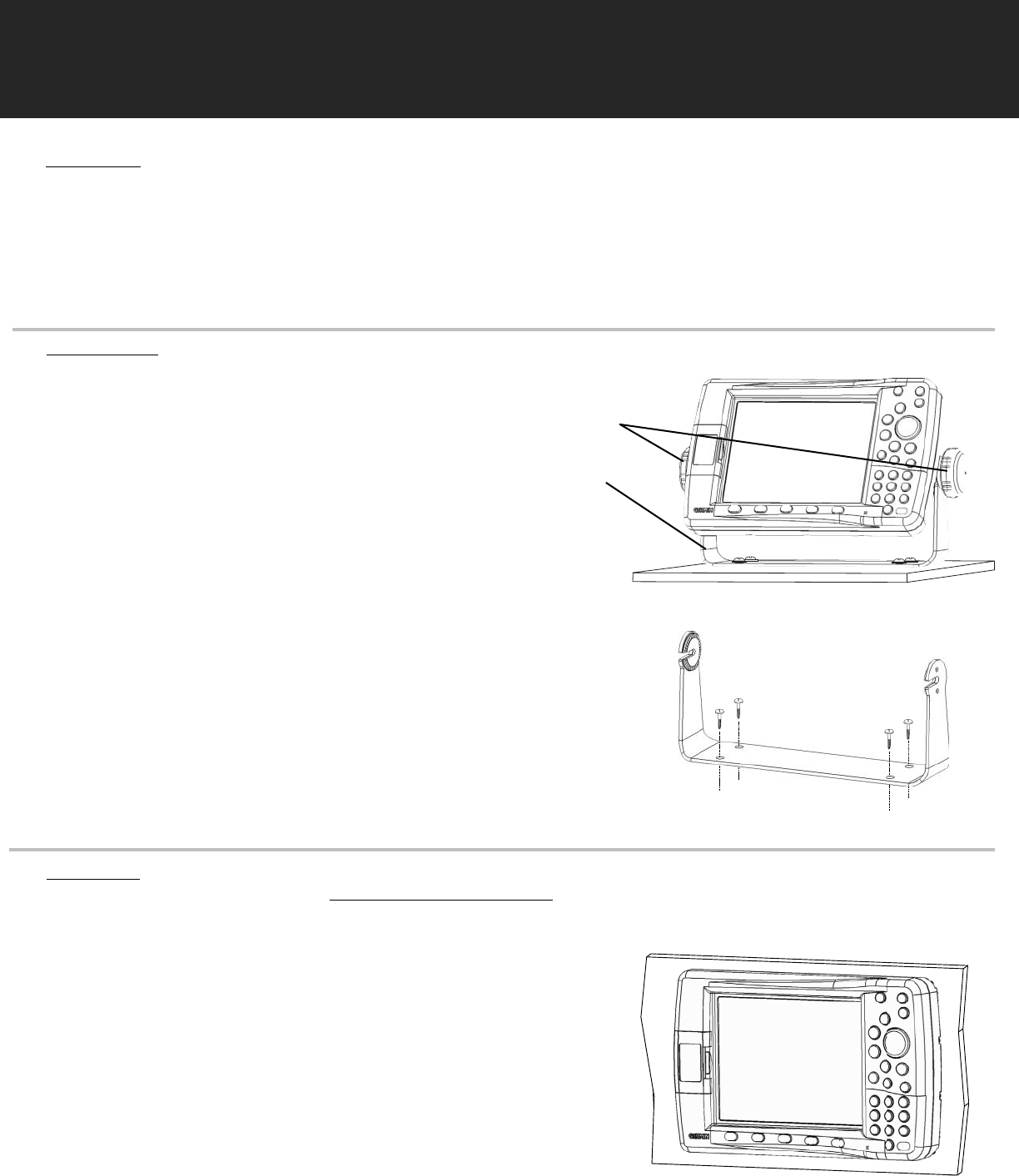

Installing the Bail Mount and Unit:
1. Using the Bail Mount as a template, mark the location of the four mounting holes
with the pencil. Be sure to leave at least two inches of clearance behind the unit
for the wiring connector.
2. Using an appropriate size drill bit, drill pilot holes for the fasteners that you choose
to use.
3. Secure the Bail Mount to the surface with the fasteners.
4. Loosen the Mounting Knobs.
5. Slide the unit into the Bail Mount and tighten the Mounting Knobs.
Flush Mount
Tools
Jig Saw
Masking Tape
Scissors
Drill
Drill Bits - 1/8” (3mm) and 3/8” (6mm)
1/16” (2mm) Allen (Hex) Wrench
Sockets or Pliers
Hammer
Center Punch
Mounting Knobs
Bail Mount
Bail Mount
Flush Mount
Introduction
The GPSMAP 3006C/3010C Multi-Function Display (MFD) must be properly installed according to the following instructions to get
the best possible performance. To complete the installation, you will need the appropriate fasteners, tools, and mounts listed in each sec-
tion. These items should be available at most marine dealers. Always wear safety goggles, ear protection, and a dust mark when drilling,
cutting, or sanding. When drilling or cutting, always check fi rst to see what is on the opposite side of the surface. When in doubt, seek
professional assistance. The GPSMAP 3006C/3010C should be mounted in a location that allows clear, minimal glare viewing of the
display and easy operation of the controls.
Included Mounting Hardware
4 - 3mm Studs
4 - Flat Washers
8 - 3mm Hex Nuts
1
