Installation Instructions

Final Wiring Connection
Once all the wiring is complete, the cables may be attached on the backside of the GPSMAP 3006C/3010C MFD. If the MFD is not being
networked, be sure to fi rmly affi x the weather cap over the open connector to limit corrosion of the contacts. The connection ports are
labeled on the back of the MFD.
Installing the Power/NMEA, Marine A/V, and Network Cables:
1. Align the notch and locking ring tab on the black Power/NMEA cable with the black POWER/NMEA port on the back of the unit. Carefully press
the cable in until it is fi rmly seated. Do not force the cable, as this may damage the pins!
2. Once the cable is seated, turn the locking ring clockwise until it stops.
3. Repeat steps 1 and 2, attaching the gray Marine A/V cable to the gray A/V port on the back of the unit.
4. If networking the MFD with the Garmin marine Network, insert the RJ-45 connector into the NETWORK port on the back of the unit and screw
the locking ring in clockwise until it is fi rmly sealed.
With power applied to the circuit, you may test the installation by pressing the red POWER key on the front of the unit. See the
Owner’s Manual for steps on initializing the receiver.

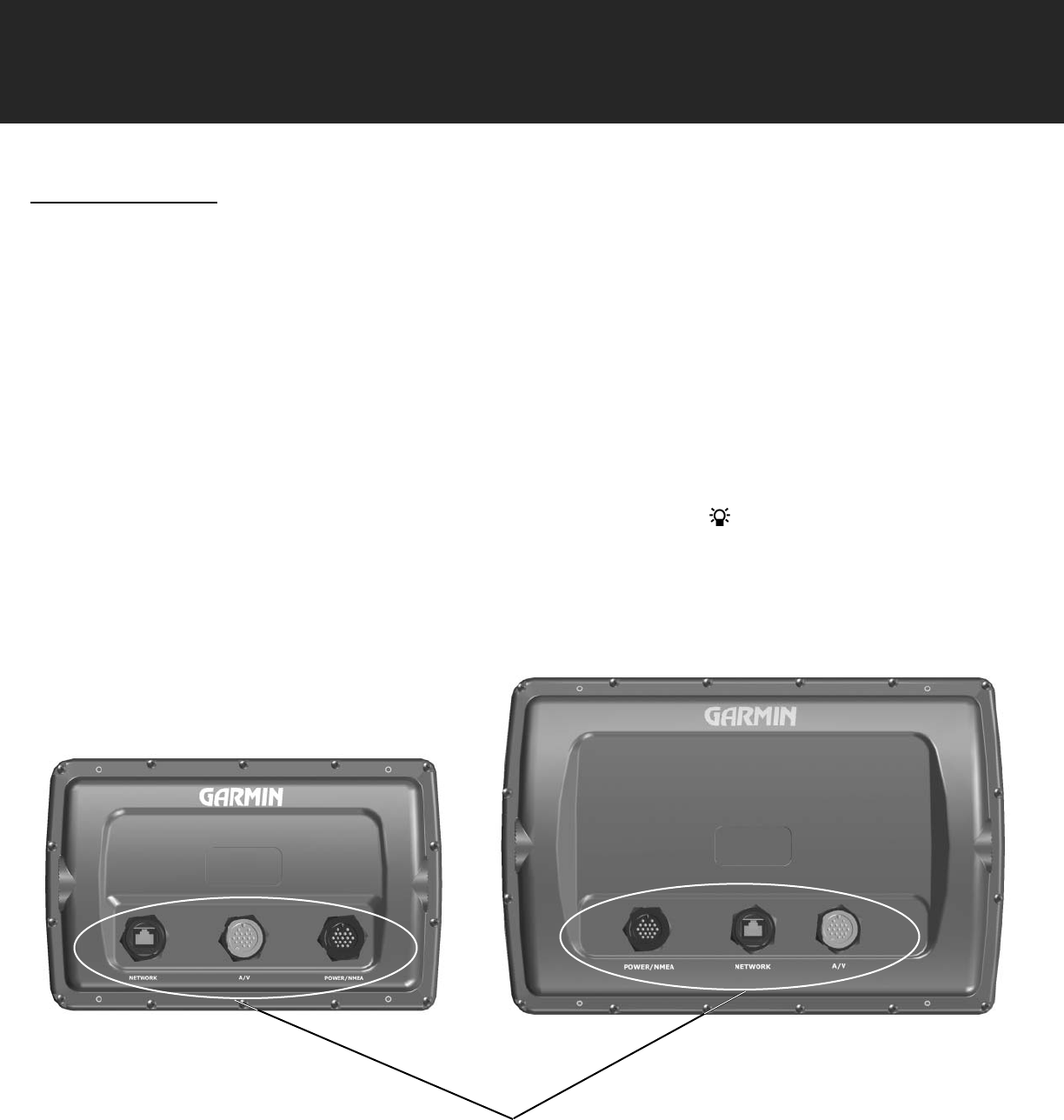

Connection Ports
GPSMAP 3006C
GPSMAP 3010C
GPSMAP 3006C / 3010C / GPS 17 Installation Guide
10
