Installation Instructions

GPSMAP 3006C / 3010C / GPS 17 Installation Guide
Garmin Marine Network
The Garmin Marine Network is a waterproof Ethernet-based system that allows Multi-Function Displays (MFD) to communicate with
sensors and other MFDs over the network. Waterproof RJ-45 connections allow for simple installation and high-speed connectivity. For a
simple installation with one MFD and one sensor the two devices can be directly connected with a Garmin Marine Network Cable. If more
than two MFDs are desired in the installation, a Garmin Marine Network Port Expander (GMS 10) is needed to expand the network. If two or
more GPSMAP 3006C/3010C units are installed and networked, only one GPS 17 antenna needs to be installed. You may add up to fi ve total
devices to a Network Switch. If more than fi ve are needed, you may add more Network Port Expanders to expand the network. This network
is NOT compatible with PC networks. Do NOT attach PC devices to the Garmin Marine Network. Some examples of the Garmin Marine
Network are included below. Please refer to the individual installation instructions for the individual sensors. Additional Garmin Network
Cables are available from your Garmin dealer or direct from Garmin.
MARINE
NETWORK SENSOR
GARMIN
GPSMAP 3006C/3010C
MFD
GARMIN
GPSMAP 3006C/3010C
MFD
GARMIN GDL 30/30A
MARINE WEATHER/A UDIO
SATELLITE RECEIVER
GPS 17
GARMIN GMS 10
MARINE NETWORK PORT EXPANDER
TO TRANSDUCER
GSD 20
SOUNDER
MODULE
GARMIN
GPSMAP 3006C/3010C
MFD
GARMIN
GPSMAP 3006C/3010C
MFD
GPS 17

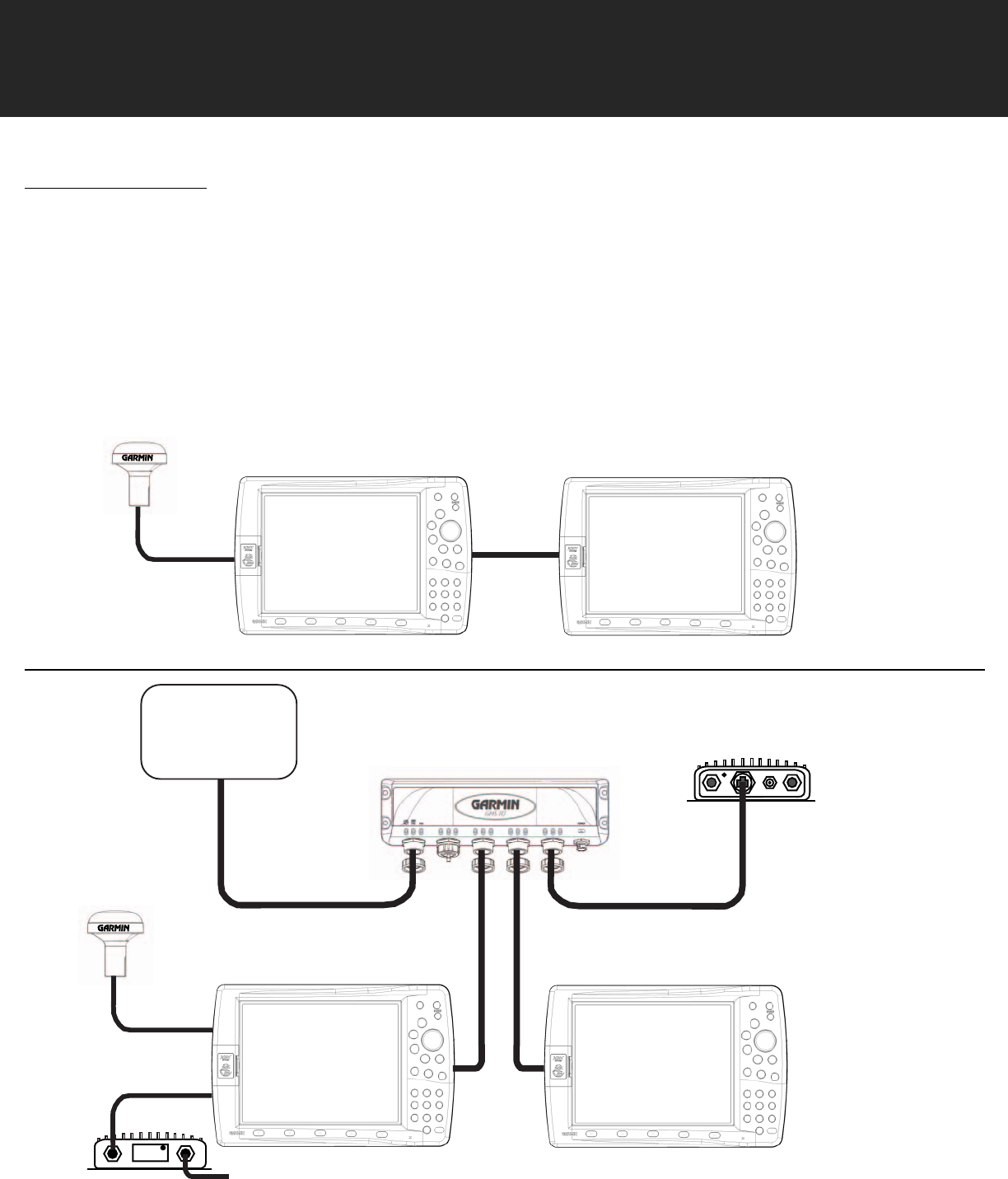

Two MFD Network
Two MFD Networked with Sensors and GMS10 Port Expander
