OPERATION
Beacon Audio Frequency Audio Keying Rate Lamp Color
Outer Marker
400 Hz — — — 2 dashes per second Blue
Middle Marker
1,300 Hz • — • —
95 dot-dash combinations
per minute
Amber
Airway/Inner Marker
3,000 Hz • • • • 6 dots per second White
Table 6A.3.1 Marker Beacon Signal Characteristics
Inner Marker Middle Marker Outer Marker

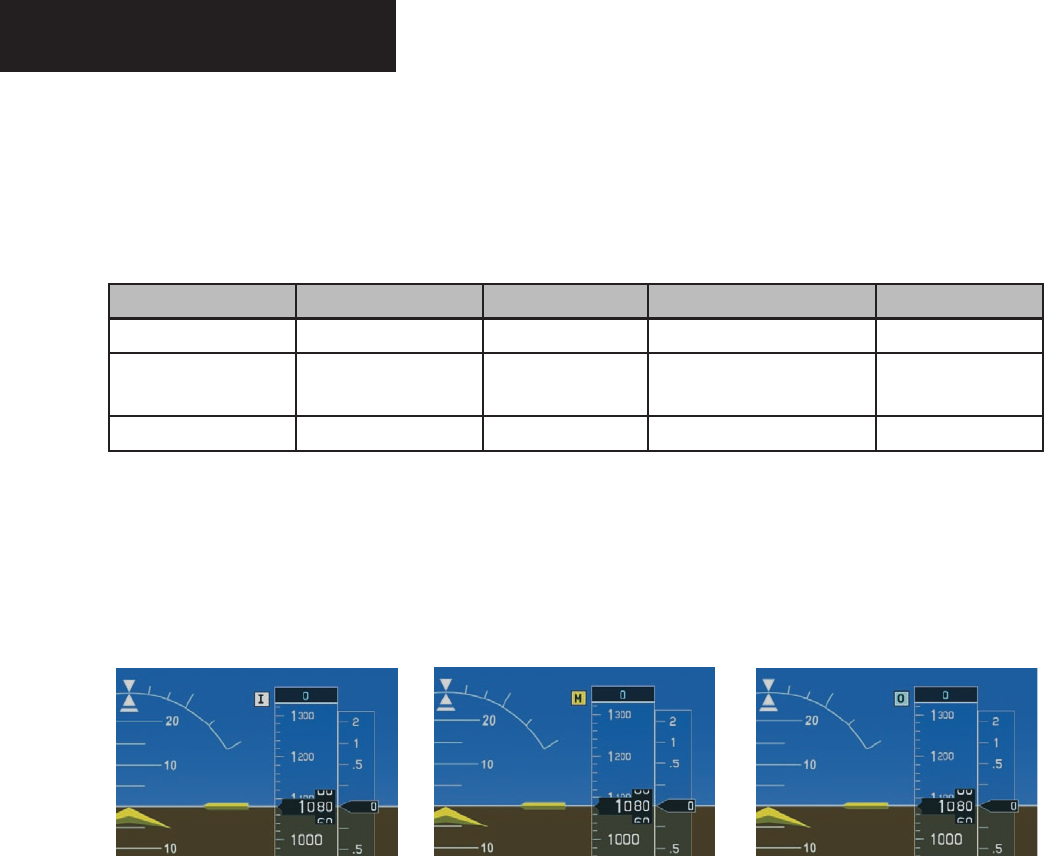

Figure 6A.3.3 Marker Beacon Signal Indicator Lights on the PFD
