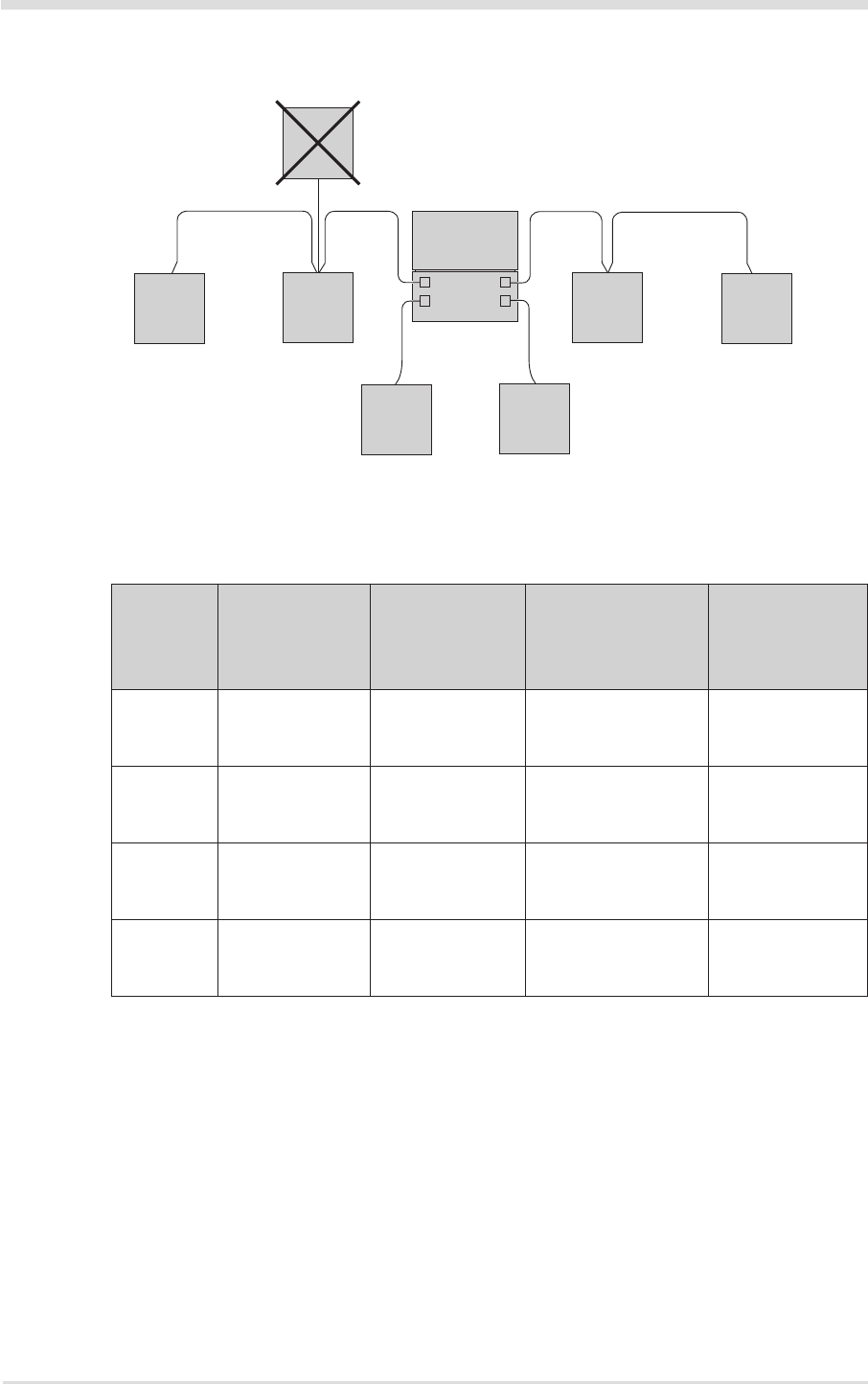

HBUS
Device
"T" or "Star" circuits are
not permied between
HBUS devices
Controller 6000
H1
H4
H8
H5
HBUS
Device
Terminate
HBUS
Device
Terminate
HBUS Module
HBUS
Device
HBUS
Device
Terminate
HBUS
Device
Terminate
HBUS
Device
Cable distance
Cable type Cable format* Single terminal
connected using
HBUS data only
in a single cable
Single terminal
connected using
Cardax IV data only
in a single cable***
Single terminal
connected using
power and data
in a single cable
CAT 5e or
beer**
4 twisted pair
Each 2 x 0.2 mm
2
(24 AWG)
500 m (1640 ) 200 m (650 ) 50 m (165 )
BELDEN
9842**
(shielded)
2 twisted pair
Each 2 x 0.2 mm
2
(24 AWG)
500 m (1640 ) 200 m (650 ) 50 m (165 )
SEC472 4 x 0.2 mm
2
Not twisted pairs
(24 AWG)
400 m (1310 ) 200 m (650 ) 50 m (165 )
SEC4142 4 x 0.4 mm
2
Not twisted pairs
(21 AWG)
400 m (1310 ) 200 m (650 ) 100 m (330 )
* The matching of wire sizes to equivalent wire gauges are only approximate.
** Recommended cable types for opmal HBUS RS485 performance.
*** Not applicable for PIV, Alarm Terminal or mobile credenal reader installaons.
Notes:
• Shielded cable may reduce the obtainable cable length. Shielded cable should be
grounded at the Controller end only.
• If other cable types are used, operang distances and performance may be reduced
depending on the cable quality.
• The recommendaon for opmal performance is up to 20 T20 terminals can be connected
to one Controller 6000. Of these 20 terminals, up to 4 could be congured for alarm zone
(or fence controller) management.
A terminal is congured for alarm zone management when it has either Alarm Zones
congured on the Alarm Zones properes page or items congured upon its mimic panel.
