3E4291 Gallagher T20 Terminal Installaon Note | Edion 1 | August 2016
Copyright © Gallagher Group Limited

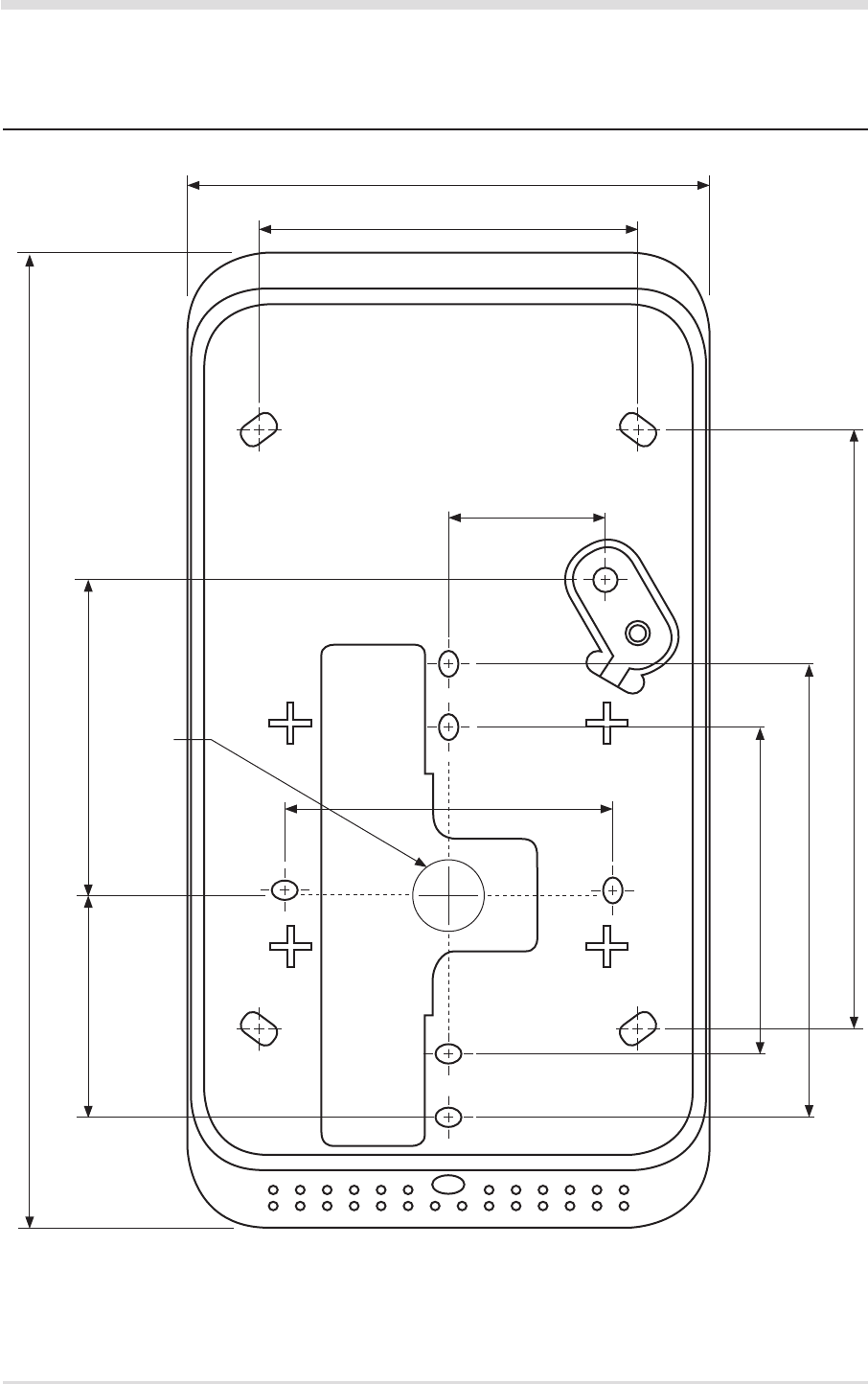

13 Mounngdimensions
IMPORTANT
This picture is not to scale, therefore use the measurements provided.
179.5 mm (7.07 in)
95.7 mm (3.77 in)
60.3 mm (2.37 in)
29 mm
(1.14 in)
60.3 mm (2.37 in)
83.3 mm (3.28 in)
Cable Exit
110 mm (4.33 in)
40.65 mm (1.60 in) 58 mm (2.28 in)
70 mm (2.76 in)
