Connecting the pipes
Note: If an aluminum pipe is used, smooth the
connection area beforehand.
Exhaust-air pipe Ø 150 mm (recommended size)
Attach exhaust-air pipe directly to the air-pipe
connector and seal.
Exhaust-air pipe Ø 120 mm
1 Attach reducing connector directly to the air-pipe
connector.
2 Attach exhaust air pipe to the reducing connector.
3 Seal both joints appropriately.
Attaching flue duct
9 WARNING
Risk of injury
From sharp edges during installation. Always
wear protective gloves while installing the
appliance.
1 Separate the flue ducts.
To do this, remove the adhesive tape.
2 Remove the protective foil from both sides.

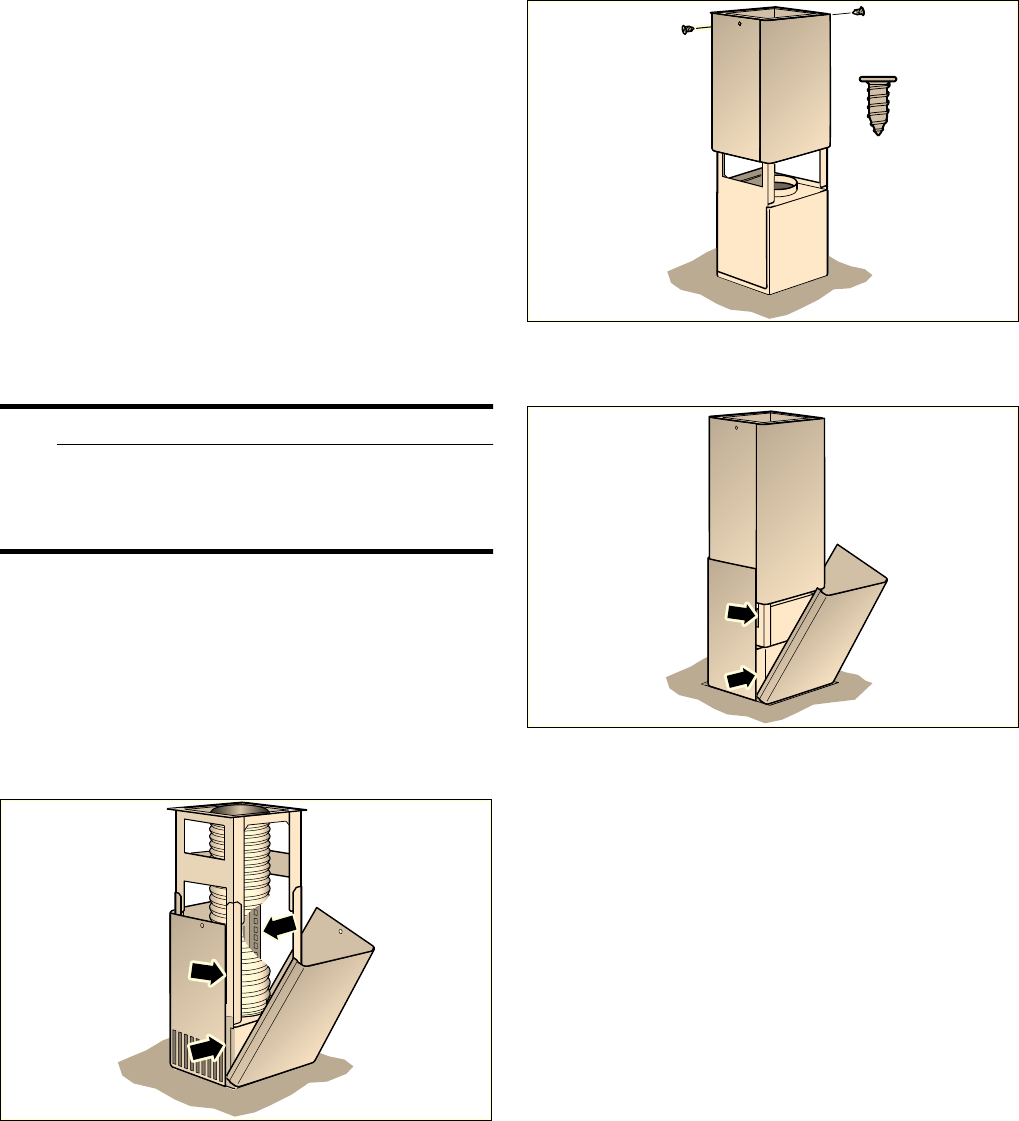

3 Place both parts of the upper flue on the
appliance and push together.
Note: The slots of the upper flue must point
downwards.
4 Push up the upper flue part and secure with
2 screws.
5 Insert both lower parts of the flue and push
together.
Removing the appliance
1 Loosen the flue duct.
2 Disconnect the appliance from the power supply.
3 Loosen the exhaust air lines.
4 Loosen screws for fastening the appliance.
5 Remove the appliance.
