Installation guide
Table Of Contents
- A Mac utility is provided with G-RAID mini2 to select the RAID mode. Follow the directions below to configure G-RAID mini2 in fail-safe RAID 1 (mirroring) mode.
- NOTE: G-RAID mini ships from the factory in RAID 0 mode.
- /
- WARNING: Changing the RAID level will erase any data stored on G-RAID mini.
- A Windows utility is provided with G-RAID mini to select the RAID mode. Follow the directions below to configure G-RAID mini2 in fail-safe RAID 1 (mirroring) mode.
- NOTE: G-RAID mini2 ships from the factory in RAID 0 mode.
- /
- WARNING: Changing the RAID level will erase any data stored on G-RAID mini2.
G-RAID mini
2
Installation Guide

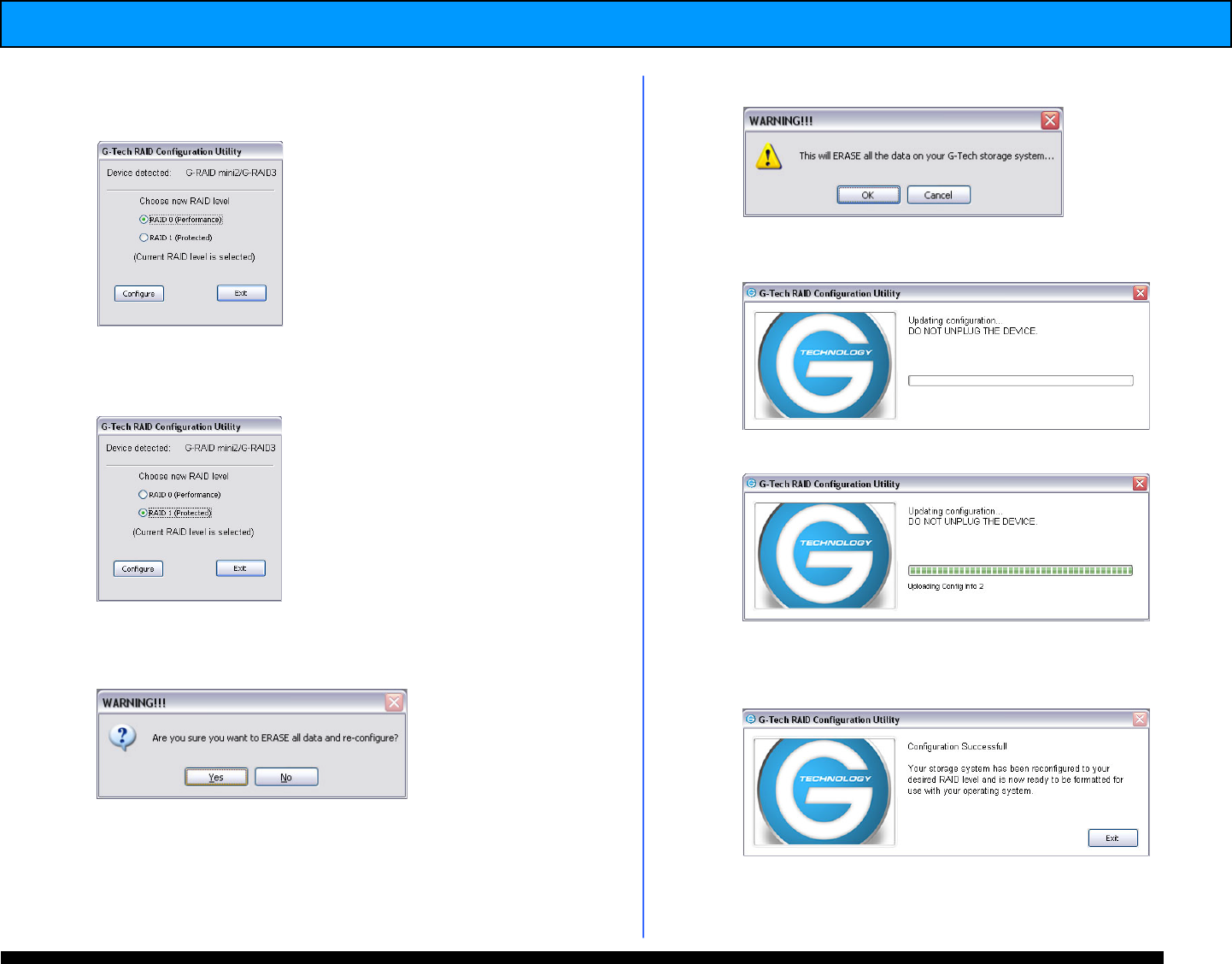

3. Once the utility finds your G-RAID mini
2
, the
following window will appear.
4. Select the RAID 1 (Protected) raido button as shown
below and click the <Configure> button to continue.
5. The following window will appear. Click on the <Yes>
button to continue.
6. The following window will appear. Click on the <Yes>
button to continue.
7. The following window will appear.
8. Y o u r G -RAID mini is now configured in RAID 1 mode.
9. The following window will appear. Click on the <Exit>
button to exit the utility.
10. Refer to Section 12 for information on formatting
G-RAID mini
2
for use with Windows.
