Airplane Section

AlLEVATORS/COMBINED AlLERONS & ELEVATORS (ALV)

This

function

allows

you

hook

the

eleva-

tor surface on each side of the airplane independ-

ently,

that

they

operate

together

(elevator

mode) and differentially (aileron mode). This

function,

sometimes called

"ailevators"

(ALV)

will

give aileron control even at low speeds, because

the

propeller

wash

always passing over

the

tail

surfaces and may be used for rolling commands.

This function requires two elevator servos con-

nected to receiver output channels 2 and 5. In this

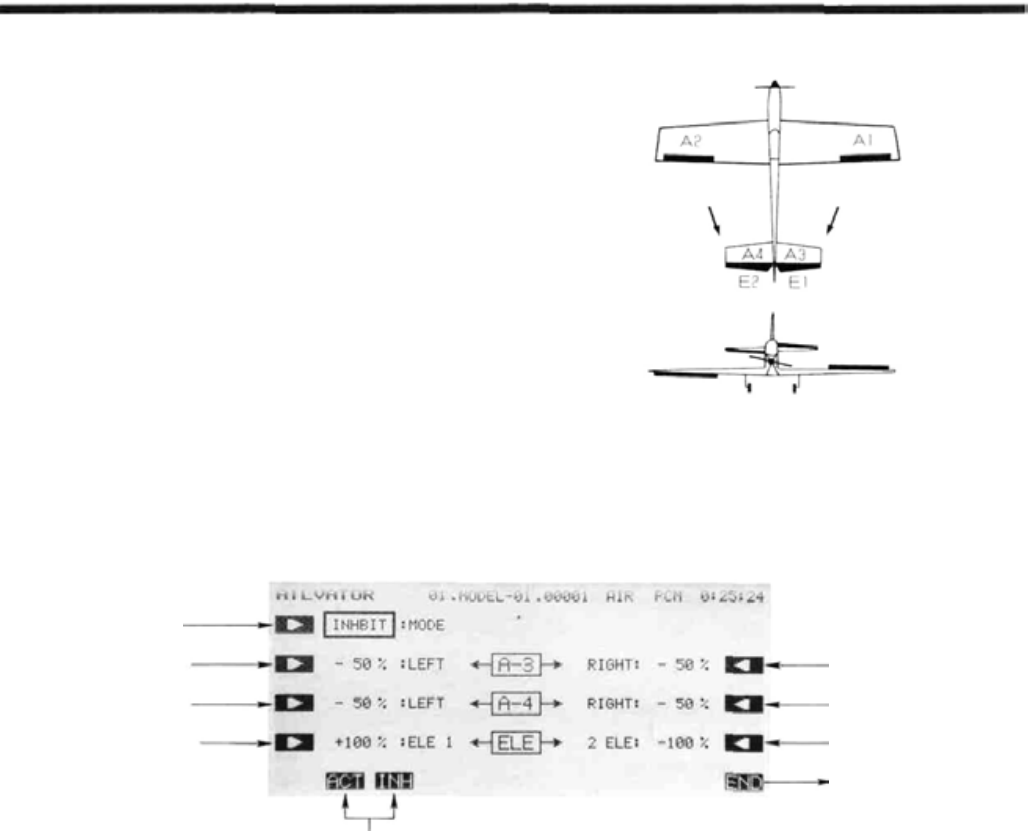

manual (see diagram), the rear control surfaces are

referred to as Aileron 3 and Aileron 4. With this

function, all control deflections — left and right

ailerons,

and

elevator

both

sides

—

can

adjusted. You may even add differential to the rear

ailerons.

Setting Up Differential

Elevators

Activation of command

In the Condition Menu, press the ALV key to get the

AILVATOR menu shown below. Use the A key to

activate mode setting, then press the ACT or INH

keys (F and

to activate or inhibit the function.

Mode setting

Aileron 3 Left.

Side Rate

Aileron 4 Left

Side Rate

Elevator 1 Rate

Setting

Aileron 3 Right

Side Rate

Aileron 4 Right

Side Rate

Elevator 2 Rate

Setting

Return to

condition menu

Mode Activation

Setting the Aileron 3 Rates

You now set the left-side travel for Aileron 3. Press the

B key to activate left rate setting for Aileron 3 and set

the rate with the numeric keys E to M . The number

keys 0

through 100

input

the

value

directly. The +

and - keys increase or decrease the value by 1. The

+/-

key may be used to reverse the throw direction.

Your setting may vary from -100 to +100%,the initial

value is-50%.

Now set the right-side rate for Aileron 3. Press the Q

key to activate Aileron 3 right rate setting and set the rate

with the numeric keys as before.

Setting the Aileron 4 Rates

This procedure

repeated

for

Aileron

Press

the C

key to activate left rate setting for Aileron 4 and set the

rate with the numeric keys E to M as before. The max

values and initial setting are the same as for Aileron 3.

Now set the right-side rate for Aileron 4. Press the 13

key to activate Aileron 4 right rate setting and set the rate

as before.

Setting the Elevator Rates - 1 and 2

You now set the rate for Elevator 1. press the D key

to activate rate setting for Elevator 1 and set the rate with

the numeric keys E to M . The initial rate is 100%, but

you may vary your setting between -100 and +100%.

Now set the rate for Elevator 2. Press the

key to

activate Elevator 2 rate setting and set its rate with the

numeric keys. Settings have the same range as Elevator 1.

Checking Your Work

After you have set up the Ailevator rates, be sure that

they move the correct directions. For up elevator com-

mand, both elevators should move upward. For right

aileron command, the trailing edge of the right-hand

surface should move up. and the trailing edge of the left-

hand surface should move down. If they do not, use the

+/- to reverse the direction as needed. Adjust the

travels on either side to get the differential effect, if you

wish.

Exiting

Use the

END ( N

) key to leave this menu.

Airplane Section, Page 88
