Installation Instructions

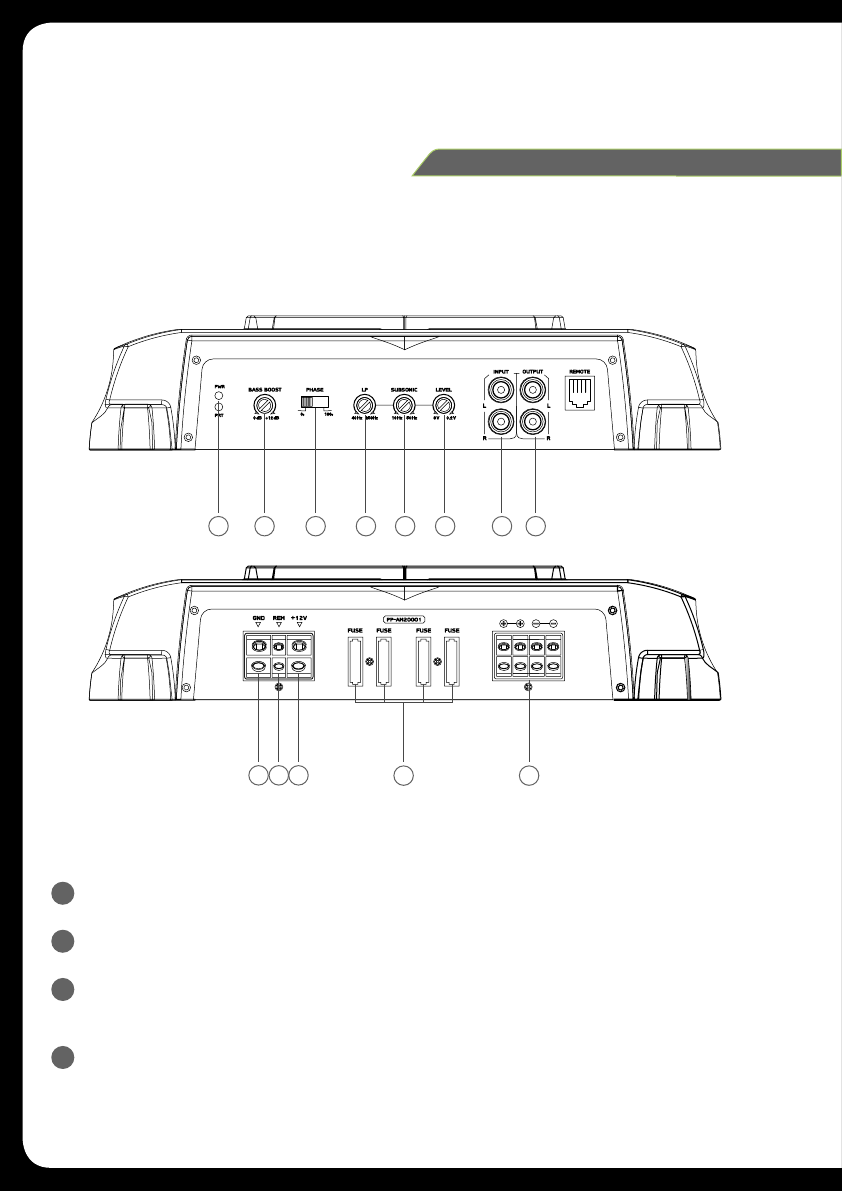

CONTROL DESCRIPTIONS

1 POWER AND STATUS LED’S:

This displays ‘Green’ if the ampliﬁer has been correctly powered up and ‘Red’ if any faults are present.

2 BASS BOOST:

This is a variable control to increase the bass boost at 45Hz from 0 – +12dB of gain, adjust to suit.

3 PHASE SWITCH:

Select the phase switch to 0 or 180 degree to adjust the in phase or out of phase subwoofer direction to

the vehicles system.

4 LOW PASS:

Ensure the crossover frequency is set at 100Hz or below. This feature is designed to ﬁlter out all mid to

high frequencies that only full range speakers should produce.

Note: Failure to do so could result in speaker damage.

MONOBLOCK AMPLIFIER

PP-AM10001, PP-AM15001, PP-AM20001
