Accessories for your Tablet PC (opti
onal)
If the Tablet PC is connected to the Cradle, you m ust connect the
mains adapter to the Cradle.
Information when using the Multi-functional Cradle:
• When your Tablet PC is connected to th e Multi-functional Cradle, the
micro USB port on the device cannot be used at the same time. Use
the alternative interfaces on the Cradle in this case.
• The HDMI and VGA port on the the Multi-functional Cradle cannot be used
at the same time: if devices are connected to both VGA and HDMI port,
only the device on the HDMI port can be used.
• The supported max. VGA/HD
MI resolution is 1920 x 1080 pixels.
Cradle
► Switch off the Tablet PC.
► Remove the power plug of the mains adapter from the mains so cket.
► Pull the mains adapter cable out of the DC jack (DC IN) of the Tablet PC.
1
2
4
3

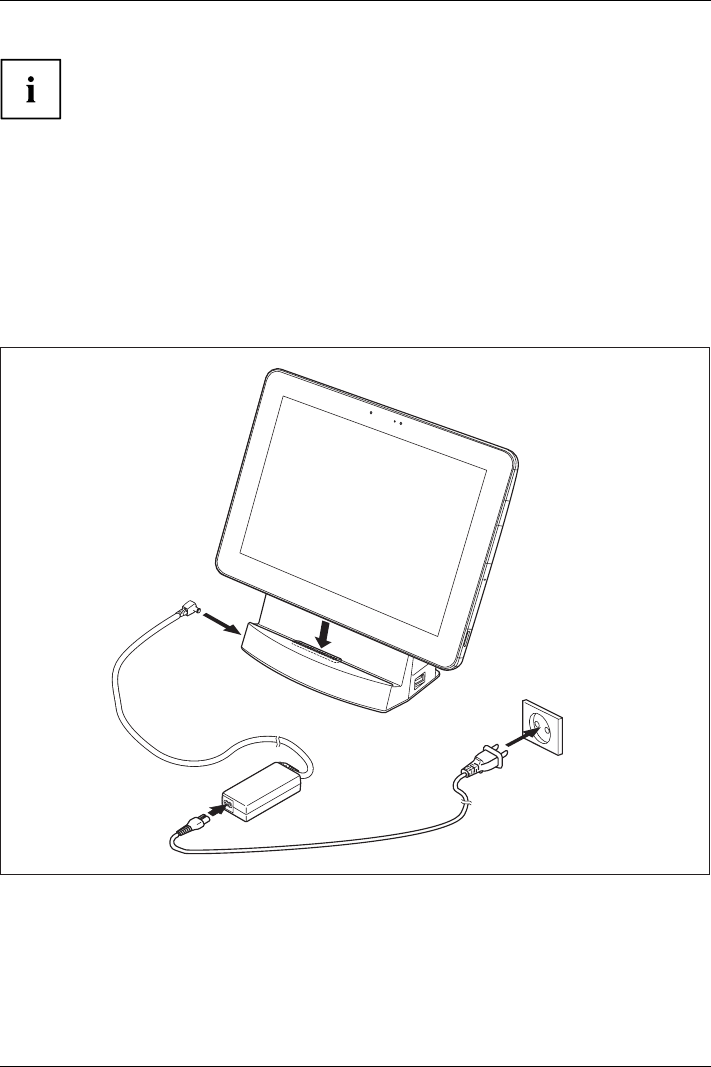

► Position the Tablet PC so that it is in line with the storage space of the Cradle.
► Push t
he Tablet PC on to the Cradle in the direction o f the arrow (1) until
you no
tice it engage with the plug.
► Plug the DC output connector on the mains adapter into the DC input
connector (DC IN) on the Cradle (2).
► Con
nect the power cable to the mains ada pter (3).
Fujitsu 49
