Working wit h the Tablet PC
► Remove the power plug of the mains adapte r from the mains socket.
► Pull the mains adapter cable out of the DC jack (DC IN ) of the Tablet PC.
1
2
4
3

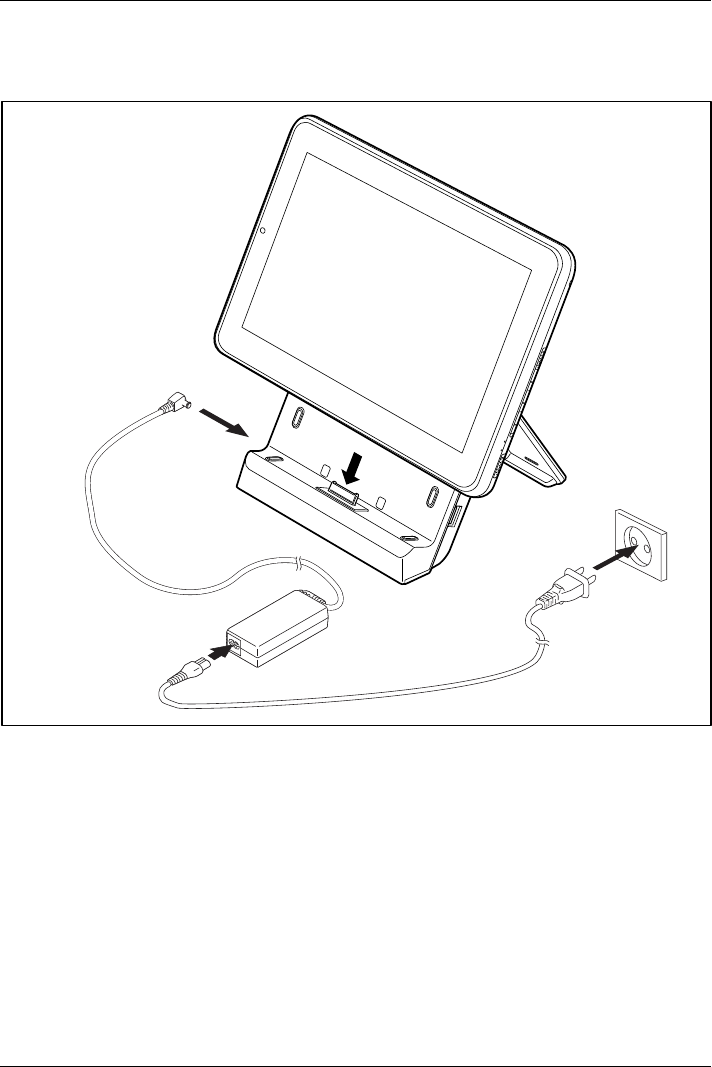

► Position the Tablet PC so th at it is in line with the storage space of the Cradle.
► Push the Tablet PC on to the Cradle in the direction of the arrow (1) un til
you notice it engage with the plug.
► Plug the DC output connector on the mains adapter into the DC input
connector (DC IN) on the C radle (2).
► Connect the power cable to the mains adapte r (3).
► Plug the power cable into the mains socket (4).
► Close the clip on the rear side of the Cradle.
52 Fujitsu Technology Solutions
