Operation Manual

PAG.
12
rev 1.1

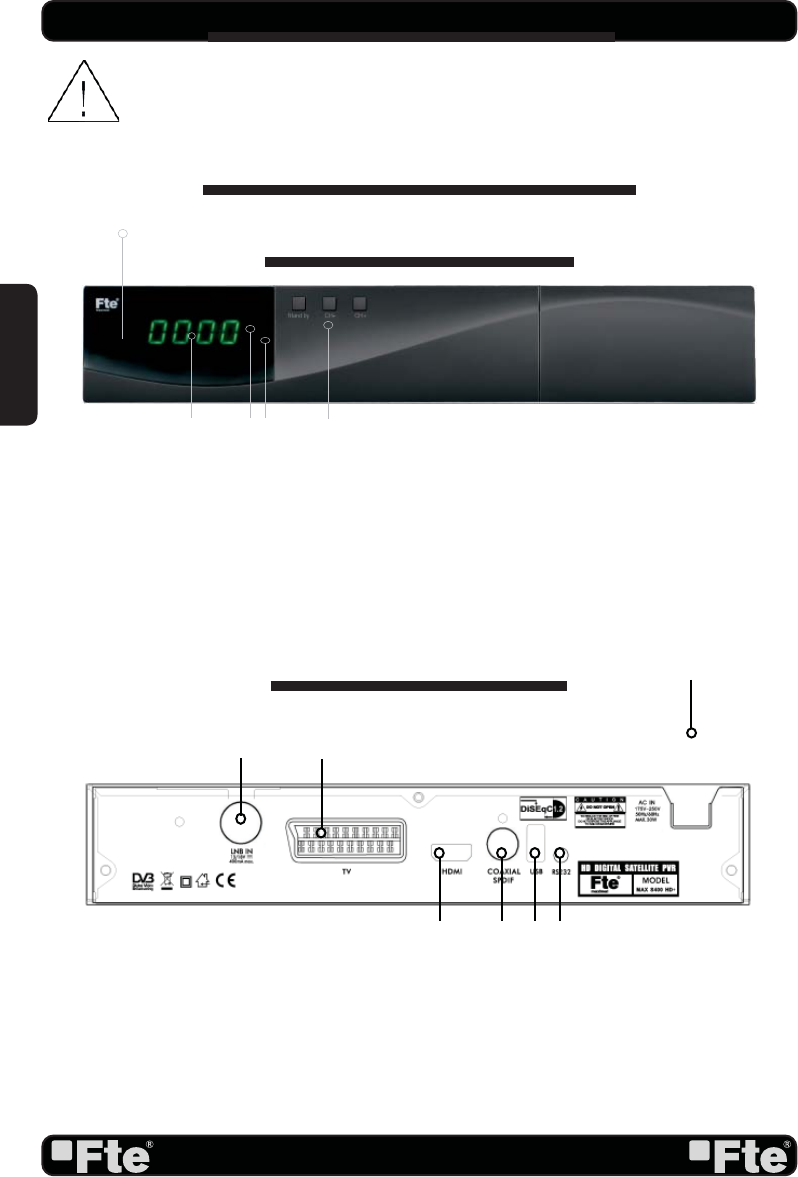

PANEL & REMOTE CONTROL DESCRIPTION
1. PANEL & REMOTE CONTROL DESCRIPTION
1.1. FRONT PANEL DESCRIPTION
1.2. REAR PANEL DESCRIPTION
1. IR-SENSOR: Reception sensor for the IR remote control signals.
2. DISPLAY: 4 Digits to display the program numbers.
3. STAND BY LED: Shows the state of the receiver.
4. LOCK LED: Indicates a suffi cient signal level at the ANT IN input.
5. BUTTONS: These buttons allow controlling some functions of the receiver.
1. IF IN: Satellite input.
2. TV SCART: Output SCART for the connection to a TV set.
3. AC IN: Mains input cable.
4. HDMI: HDMI output for connecting to a TV
5. S/PDIF: Coaxial output for digital audio (AC3).
6. USB: USB Connector 2.0
7. RS-232
1 2
3
5
4
21
4
5 6 7
3
This user’s guide is adapted to the version v.1.13B4-NR dated 21/11/2011. For future
software updates, you can download the user’s guide from the following website:
http://www.ftemaximal.com
