User’s manual · DVB 310 S / DVB 310 S CI
- 7 - DVB 310 S / DVB 310 S CI version_en_1.2 FTE maximal

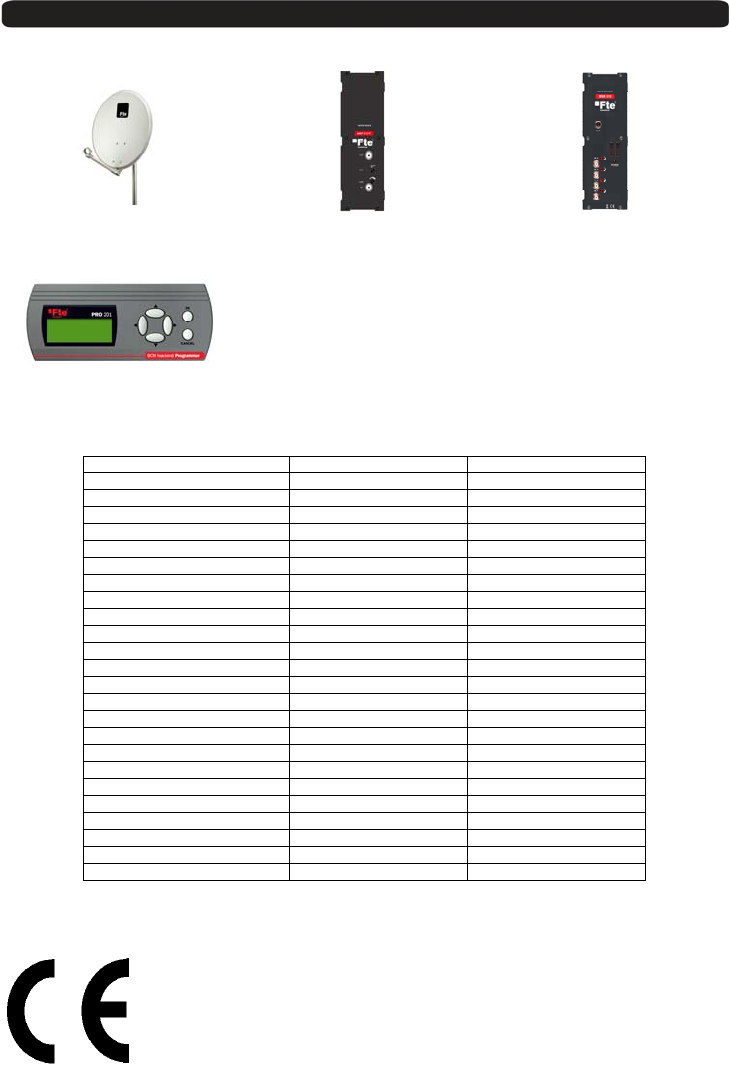

Accessories
Parabolic antenna PR series
Mod. PR 80 AB Cod. 0798021
Wide band amplifier 47-862MHz
Mod. AMP 310 P Cod. 2003520
Mixer
Mod. MUX 310 Cod. 2003518
Programmer
Mod. PRO 201 Cod.2003123
Chapter 2. Technical features
Ref.
DVB 310 S DVB 310 S CI
Code
2003500 2003522
Input frequency margin
950-2150 MHz 950-2150 MHz
Input level
-25 a -65 dBm -25 a -65 dBm
Input impedance
75Ω 75Ω
LNB (feeding/conmutation)
13V-18V / 0-22kHz 13V-18V / 0-22kHz
Input connector
Female F connector Female F connector
Input LOOP losses
<1 dB <1 dB
FEC
1/2, 2/3, 3/4, 5/6, 7/8 DVB 1/2, 2/3, 3/4, 5/6, 7/8 DVB
Modulation
QPSK QPSK
Symbol speed
2-45 MS/s 2-45 MS/s
Transport Stream
MPEG-2 ISO/ IEC 13818 MPEG-2 ISO/ IEC 13818
Video resolution
720X576 720X576
Output connector
Female F connector Female F connector
Output level
82 +1/-3 dBuV 82 +1/-3 dBuV
Regulation margin
15 dB 15 dB
Channels
C2-C69 C2-C69
Type of modulator
BLV / Stereo BLV / Stereo
S/N Video Ratio
>54 >54
MIX losses
<1 dB <1 dB
Modulation standards
B-G, D-K, L, I B-G, D-K, L, I
Band Spurious
-60 dBc -60 dBc
Common Interface
- Yes, 1 Slot
Dimensions
75x265x150 mm 75x265x150 mm
Weight
1,4Kg 1,4Kg
Chapter 3. Declaration of conformity
CONFORMITY DECLARATION
“WE , FTE MAXIMAL, DECLARE THAT THE PRODUCT
DVB 310 S AND DVB 310 S CI
ARE IN CONFORMITY WITH FOLLOWING DIRECTIVES
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC”
If you wish a copy of the conformity declaration, please contact to the company
