Instruction Manual for FrSky R9 Slim Receiver
Smart Port (S. Port) is a signal wire full duplex digital transmission interface developed by FrSky
Electronic Co., Ltd. All products enabled with Smart Port (including XJT module, XSR,X6R and X8R receiver,
new hub-less sensors, new Smart Dashboard, etc), serial port user data and other user input/output devices
can be connected without limitations for numbers or sequences at a high transmission speed.
Introduction
Thank you for purchasing FrSky R9 Slim 6/16CH long range telemetry receiver. It has lower latency and better compatibility
with all FrSky transmitters.Besides, the redundancy function ensures the security of your model. Its smaller size coupled with
reduced weight must be the best choice in your competition.In order to fully enjoy the benefits of this system, please read the
instruction manual carefully and set up the device as described below.
Features
• Small and Convenient setup
• Low latency and high precision
• Support redundancy function
• Smart Port enabled and support telemetry data transmission
• Battery voltage detection
Specifications
• Dimension: 30*13.5*5mm (L × W × H)
• Weight:3.2g
• Numbers of channel:
• With RSSI Output : Analog 0~3.3V
• Operating Voltage Range: DC 3.5V~10V
• Operating Current: 100mA@5V
• Operating Range: up to 10km or above
• Firmware Upgradable
• Compatibility: R9 series TX
R9 Slim EU Version Non-EU Version
R9M Mode Telemetry No telemetry Telemetry
Numbers of channel 6/8CH 6/16CH 6/16CH
TOP

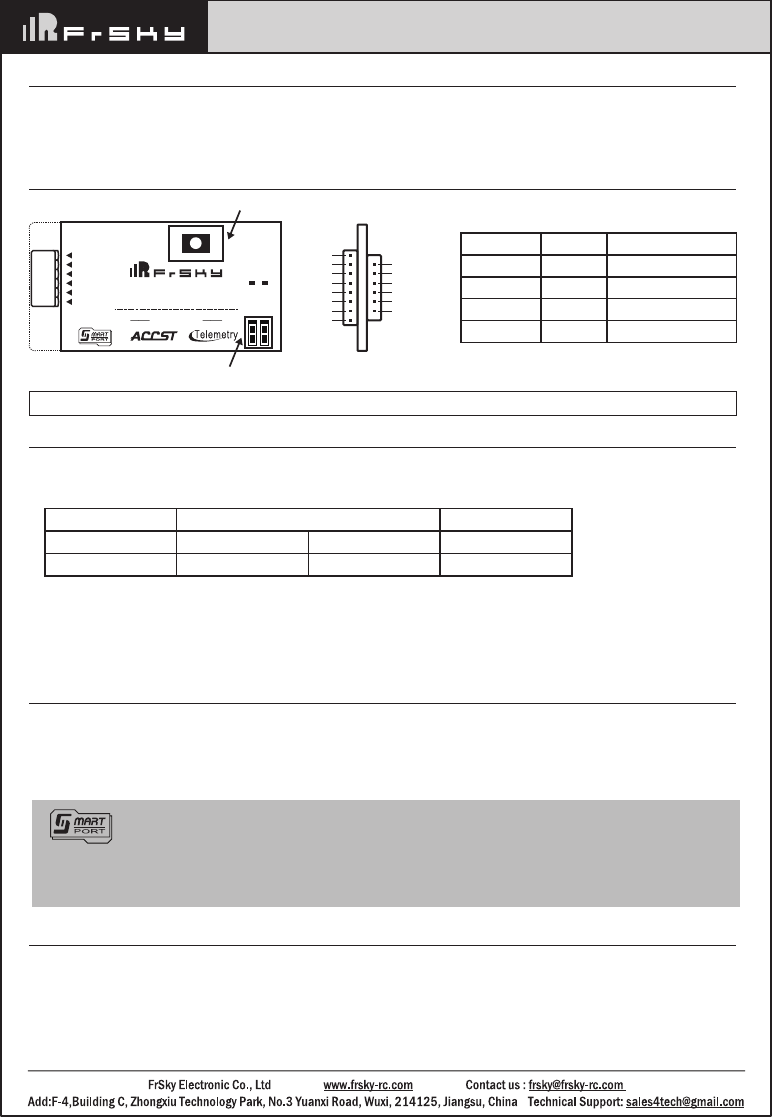

Overview
VCC
S.Port
S.BUS/IN
S.BUS/OUT
RSSI OUT
GND
VCC
CH6/TX
CH5/RX
CH4
CH3
CH2
CH1
GND
VCC
S.Port
S.BUS IN
S.BUS OUT
RSSI OUT
GND
L E D R
Bind
Binding Button
LED
L E D G
R9 SLim
6/16CH
LEFT
Binding Procedure
Binding is the process of uniquely associating a receiver to a transmitter RF module. A transmitter external RF module can
be bound to multiple receivers (not to be used simultaneously). A receiver can only be bound to one RF module.
A: In R9M mode
1. Put the transmitter RF module into binding mode
1.1 For Taranis X9D/X9D Plus/X9E and Taranis Q X7/X7S, turn on the transmitter, go to the MENU – MODEL SETUP –
PAGE 2, choose External RF/Mode R9M LBT (EU) or FCC, and select BIND (OpenTX2.2.1 and its improved versions are
strongly recommended).
Green LED Red LED Status
ON ON Waiting To Bind
ON Flashing Binding Successfully
Flashing OFF Normal
OFF Flashing Signal Lost
Note: Reserved serial port (TX RX) for further improvement.
