AddingFrSkytoaSpektrumDX8

 VoltageBooster

ThisisincaseanyoneelseisdoingaconversionwithaTxthathasa 4.8V

pack.



IfyouwanttoaddanadditionalRFmoduletotheDX8(likeanFrSkyor

similar)the4.8Vstandardbatteryisaproblemsincemanyofthemneed

6V

ormore.Youcanchangetothe7.2VLiPobatterywhichiswhatIdidbut

there'sanotheroption.



Thislittlevoltagebooster*is$3.61(thatincludesdeliveryfromChina!)and

minearrivedin13daysfromplacingtheorder.



http://www.goodluckbuy.com/dc‐dc‐sol...‐module‐1.html 



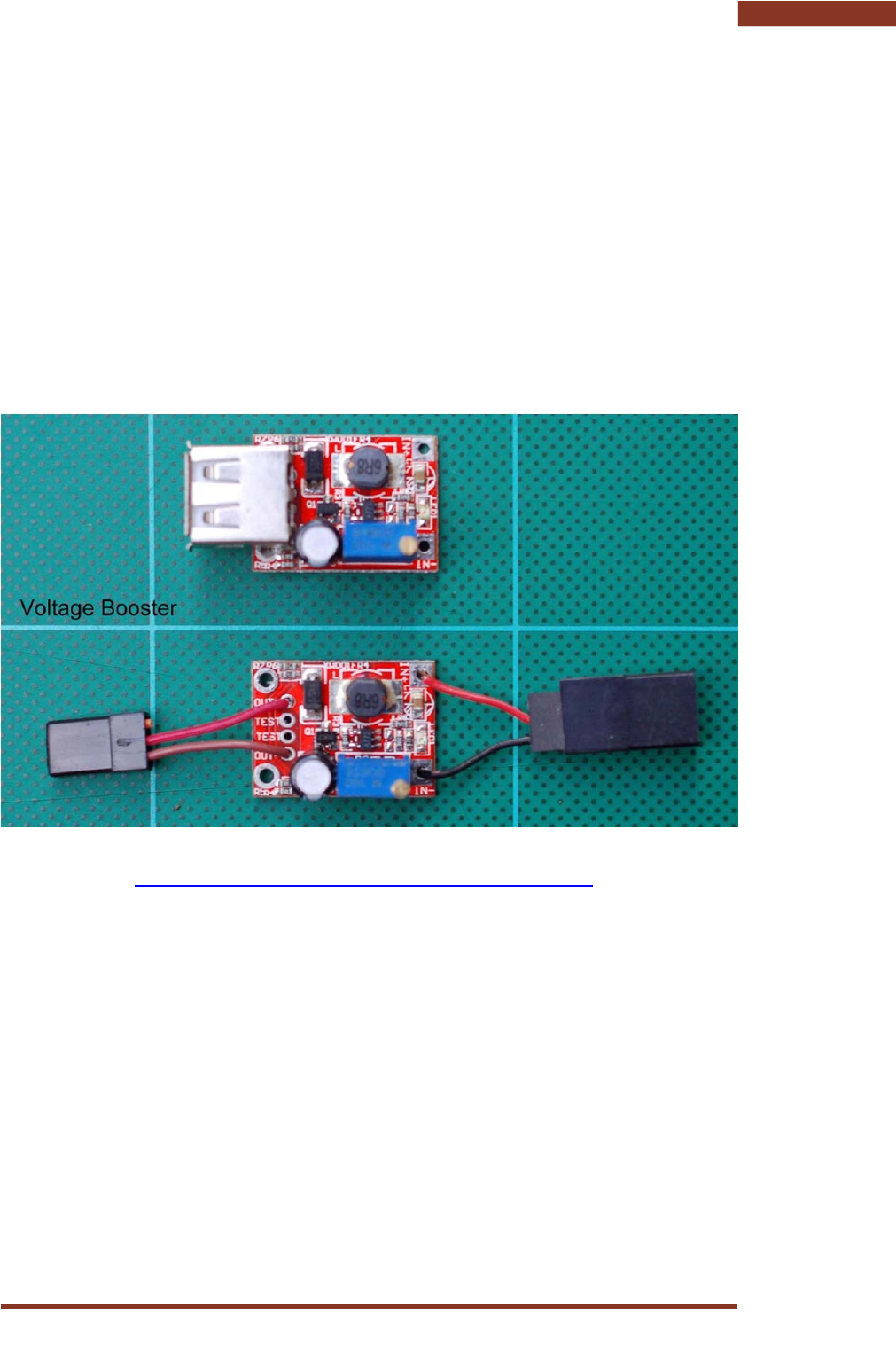

Itproducesasteady9.31VoltsatmaximumadjustmentfrommySpektrum

standardDX8NiMH.



Ihaven'tmeasuredtheripplebuttheyclaim50mVmaxand94%efficiency

withaminimumcurrentcapacityof800mA.ItseemstoworkmyDX8/FrSky

conversionjustfine.IremovedtheUSBconnectorwhichis

theOUTPUTand

addedastandardFutaba/JRINandOUTfortesting.Youwouldneedtoput

itdownstreamofthebatteryswitchofcourse,otherwiseitwoulddrainthe

battery.Theysayitonlyneeds130uAbutIbettheydidn'tincludetheLED

inthat.



Ifyouremoved

theLED(anditstillworks)thenyoucouldleaveitincircuit

permanently.Ifmymaths iscorrectit woulddrainafullycharged2000mAh
