AddingFrSkytoaSpektrumDX8
9
bodyistheground(Blackwirealsothepowerground).Onastereojackthecentre
bandanditsthirdwirearenotusedandmustnotbeconnectedtoanything.Many
stereoleadsusearedwireforthetip,whiteforthecentreandtheoutercopper
braid
forthebodybutyoushouldcheckthiswithamultimetertobesure.
3)Youneedtoconnectthe47kresistorbetweenthePPMsignalwireandground.
EitherinsidethejacklikeIhavedoneorbetweentheyellowandblackwireatthe

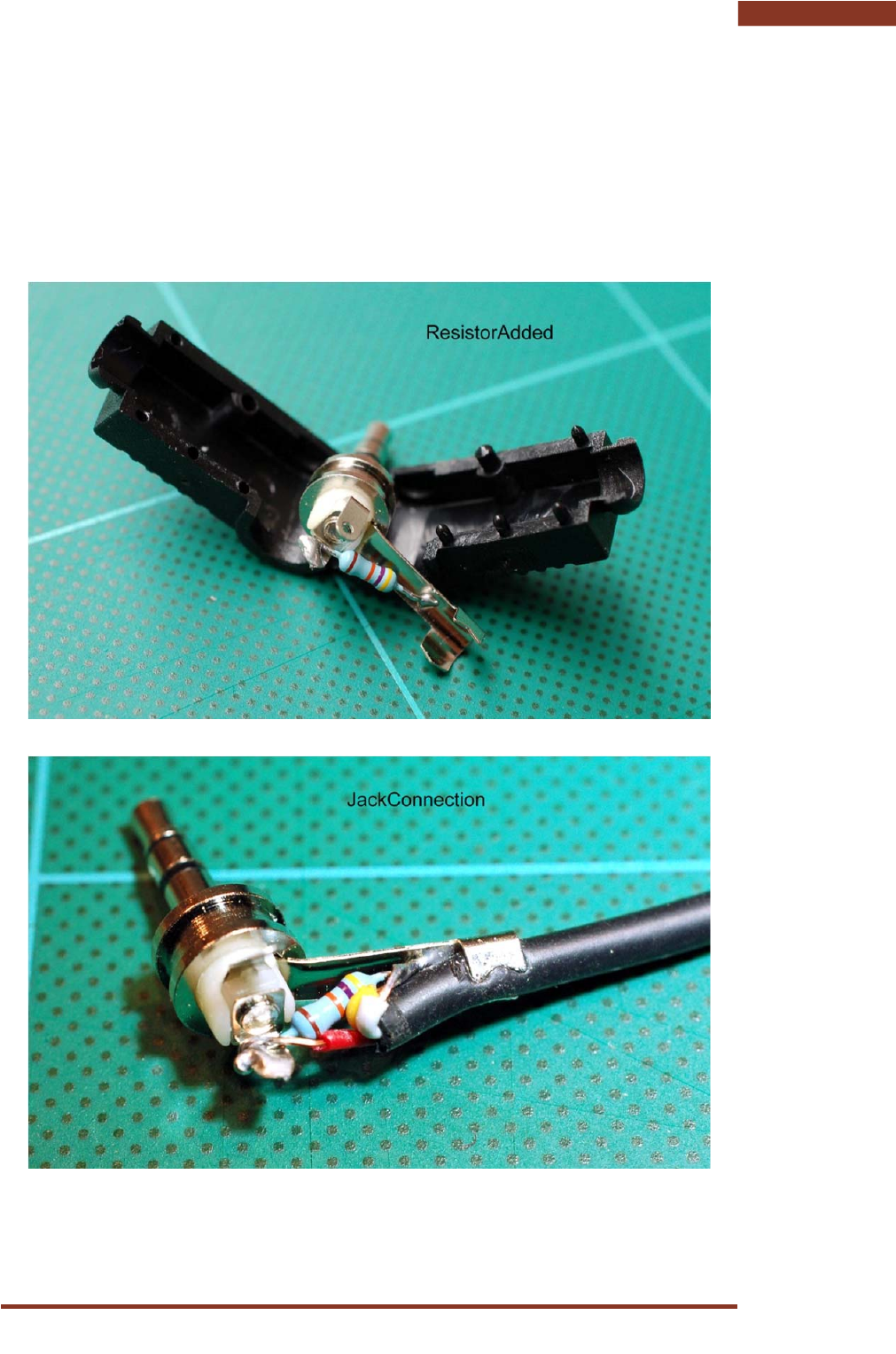

DHTend.SeeResistorAdded*
andJackConnection*.
