2 INSTALLATION OF THE BOOST CHARGER

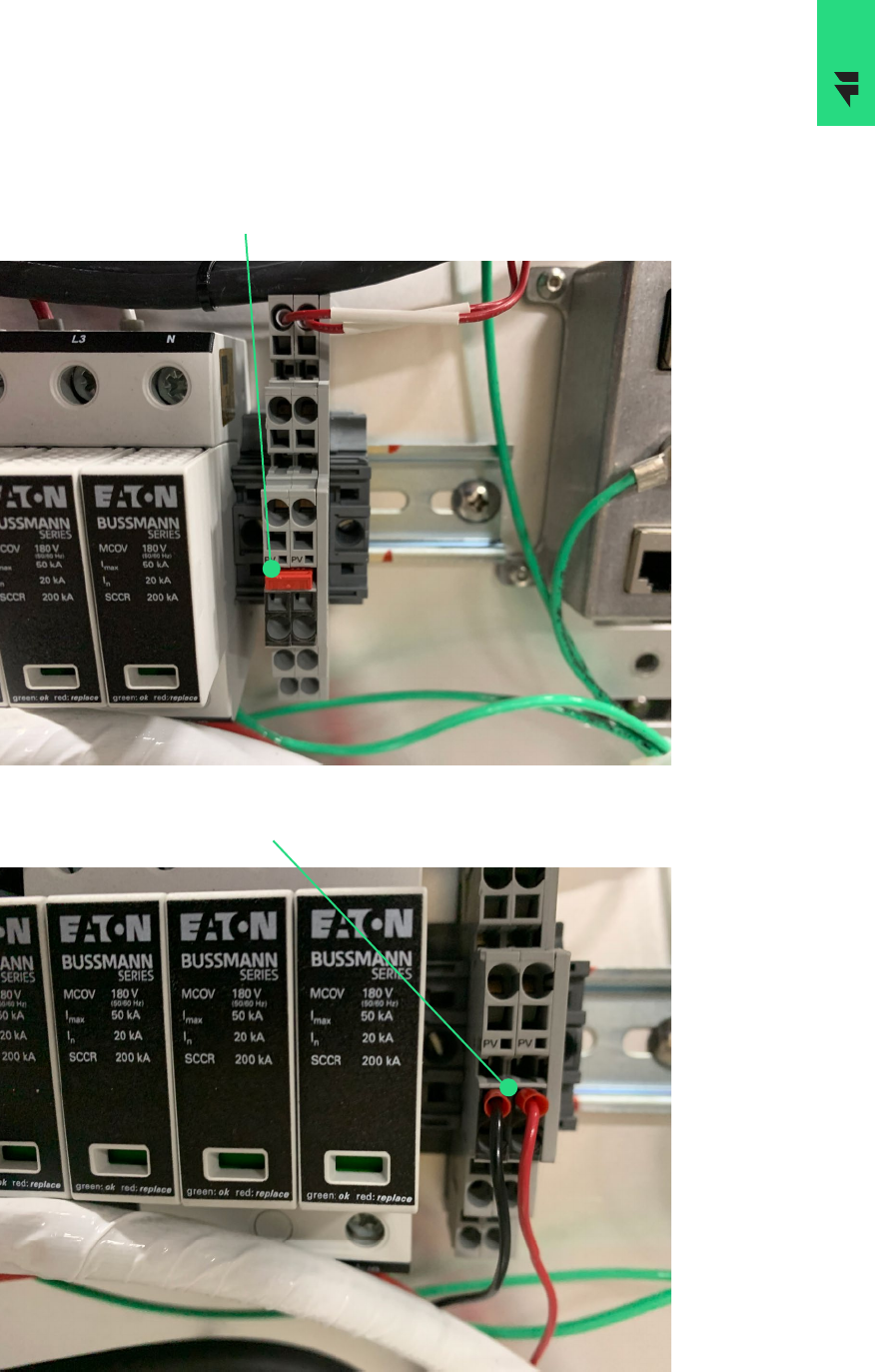

Step 1 Boost Charger works with a normally closed external safety shutoff switch. In order to wire up the
external safety shutoff switch, the red jumper shown below must first be removed.
Step 2 Wire up the remote shut off using 20 AWG wire as shown below.
Step 3 Be sure to test the operation of the external safety switch per local codes and regulations before
putting into use.
