Mounting the Boost Charger
Step 1 Remove the cap from each of the 8 mounting bolts on the concrete installation pad.
Step 2 Using a forklift or crane, slowly lift
the Boost Charger over the eight
mounting bolts on the installation
pad, ensuring the bolts align with
the corresponding holes in the
bottom mounting beams, then
lower the Boost Charger over the
bolts.
Caution: Carefully guide the
conduit into the front access door.
Caution: To ensure that the service
wiring does not get pinched
or trapped between the Boost
Charger and the installation pad,
the service wiring should not be
pulled until after the Boost Charger
is securely mounted.

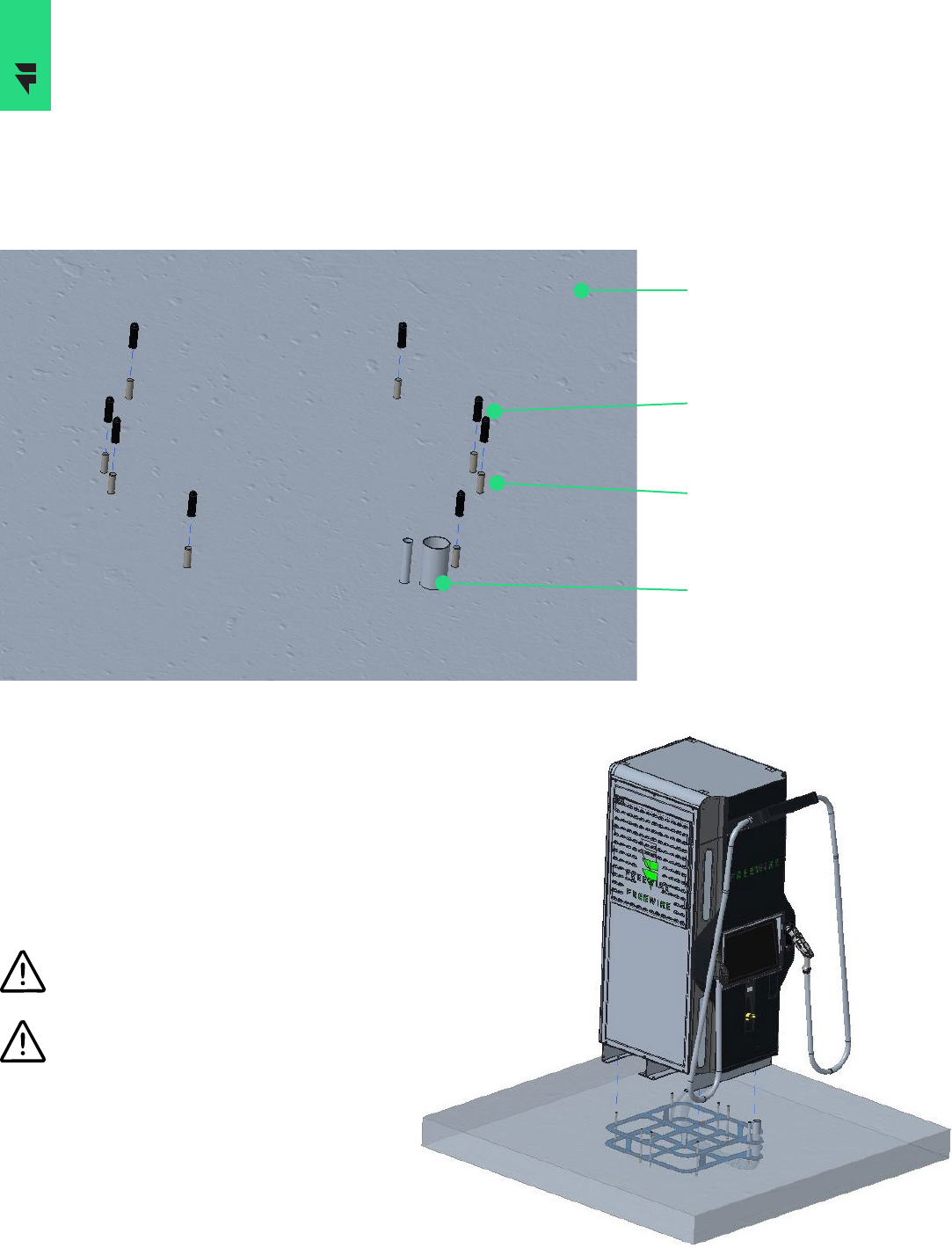

Concrete Pad
Protective Caps (x8)
Mounting Bolts (x8)
Conduit
