User's Manual

IV. Installation of the S600

z Connect the devices and set up the test environment according to Figure-2 or Figure-3. Then

connect the S600 to the PC through a Micro-USB to Type A USB cable..

z When performing the wired connection test, connect the E5515C to the RF interface of the S600..

(For the connection method, see Figure-2 and Figure-3)

z When performing the wireless connection test, connect the antennas to the RF interface of the

S600 directly. (For the connection method, see Figure-4.)

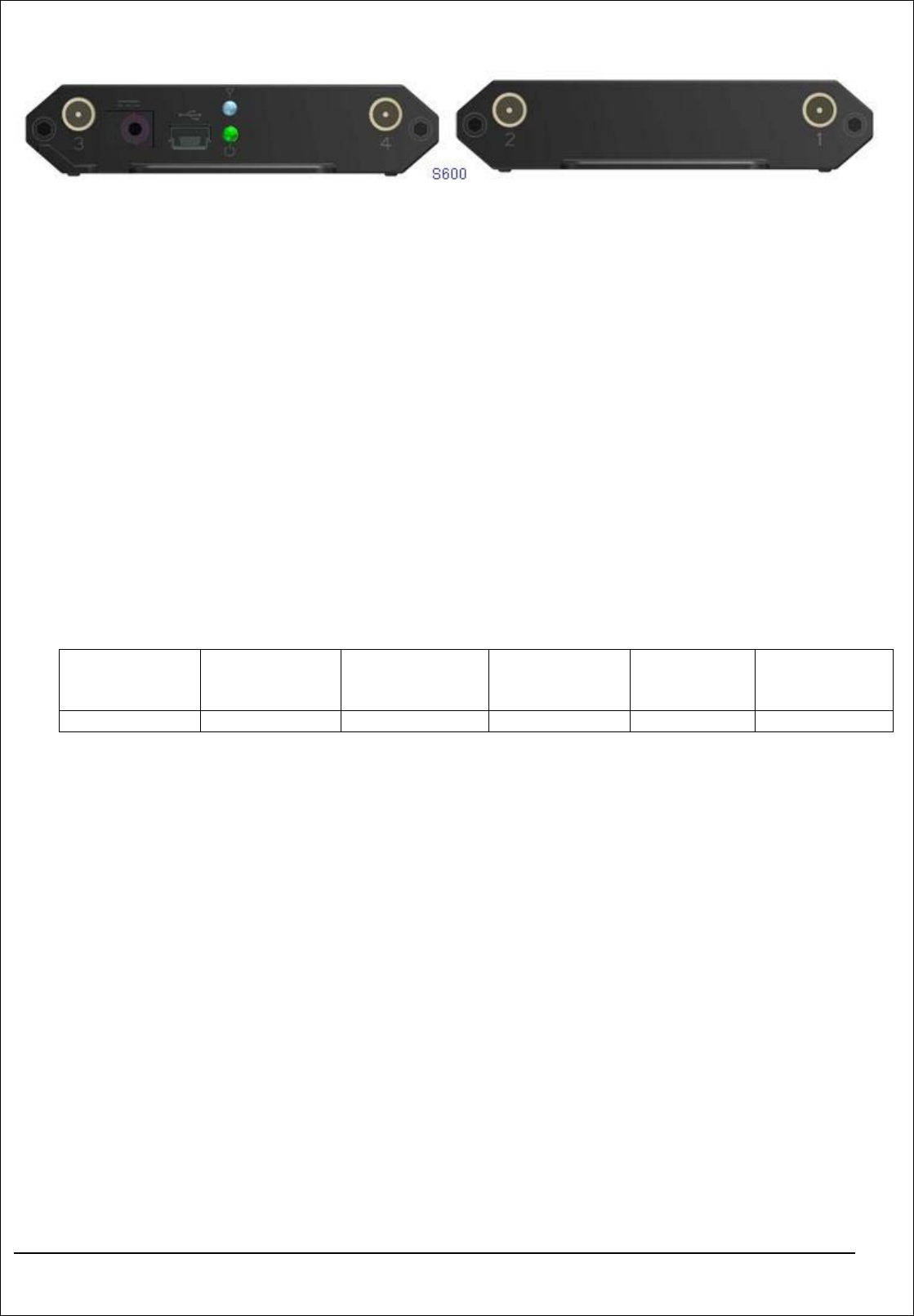

V. LED indication of the S600

Green: H/W power indication

Blue: Indicate the state of the card.(M600)

VI. Material List

Model Device USB Y-Cable CDMA Main

antenna

CDMA

Aux/GPS

antenna

WiMAX

antenna

S600 1 EA 1 EA 1 EA 1 EA 2 EA
