Installation Guide

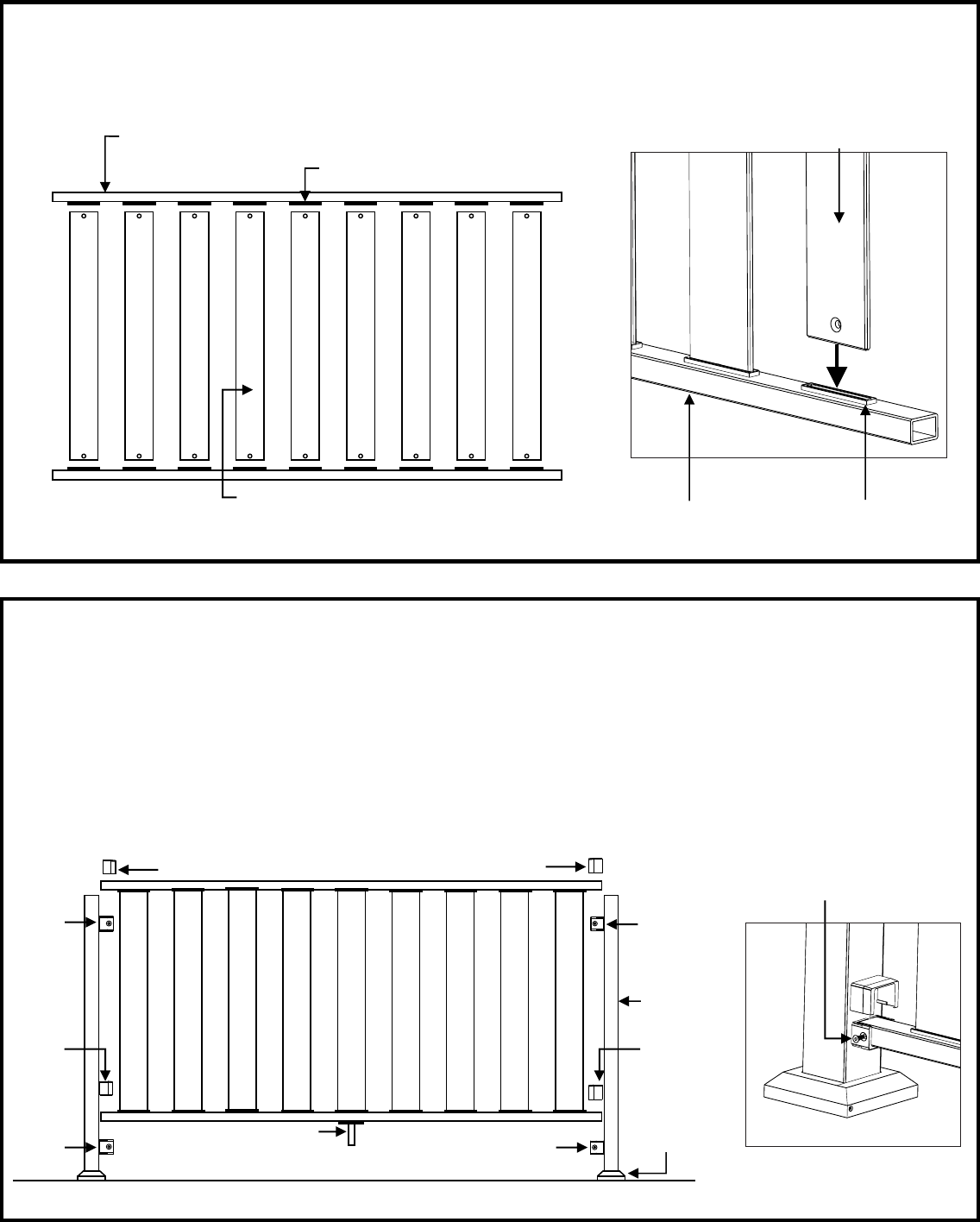

Pure View Baluster Pre-slotted Rail Assembly
Pure View Pre-slotted Rails
Pure View Pre-Installed
Standard Grommet*
*Pure View Standard Grommets come installed in pre-slotted rails.
Pure View Baluster
Pure View
Pre-Installed Grommet*
Pure View
Pre-slotted Rail
Pure View Baluster
• If pre-slotted rails were cut to length, file cut edges and coat with 2 coats of Fortress zinc based touch-up paint.
• Check fit of pre-slotted rail between installed posts.
• Insert ends of Pure View Balusters into the Pure View Pre-slotted rail and Grommet Assemblies.
Note: Holes in balusters should not be visible after insertion of baluster into rail.
Pure View Panel Installation with Evolve External Brackets
Pre-Drilled
Post
Base Cover
Installed
Set Screw
Evolve External Cap
Evolve
External
Cup
Evolve
External
Cup
Evolve
External
Cap
Evolve
External
Cap
Evolve External Cup
Evolve
External
Cup
Evolve External Cap
When using Evolve External brackets rails MUST be cut 1/2” shorter than the distance between posts.
1/4” should be cut from the ends of each rail to keep rail panel centered between posts.
• If rails were cut to length, file cut edges and coat with 2 coats of Fortress zinc based touch-up paint.
• Check fit of rail between installed posts.
13
• If using a Base Cover install it now by sliding over the top of Al Post.
• Secure Evolve External brackets to posts with provided T-25 Drive Thread-Cutting Screws. Use low speed setting on drill.
• Install 3-1/2” I-Support at mid point of bottom rail.
• Drop Pure View Panel into installed Evolve External brackets.
• Secure rails with provided T-25 Drive Thread-Cutting screws at each Evolve External bracket.
• Install Evolve External Caps by sliding the cap over the Evolve External Cup. Cap will snap into place.
13
• Al Post caps may be installed at this time by pressing cap onto top of post.
3-1/2” I - Support
3/3
