- 950 -
Slot/Port - Select the router interface for which the administratively scoped boundary is to be
configured.
Configurable Data
Group IP - Enter the multicast group address for the start of the range of addresses to be excluded.
The address must be in the range of 239.0.0.0 through 239.255.255.255.
Group Mask - Enter the mask to be applied to the multicast group address. The combination of the
mask and the Group IP gives the range of administratively scoped addresses for the selected
interface.
Command Buttons
Submit - Send the updated configuration to the router. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is performed.
Delete - Delete the selected administrative scoped boundary.

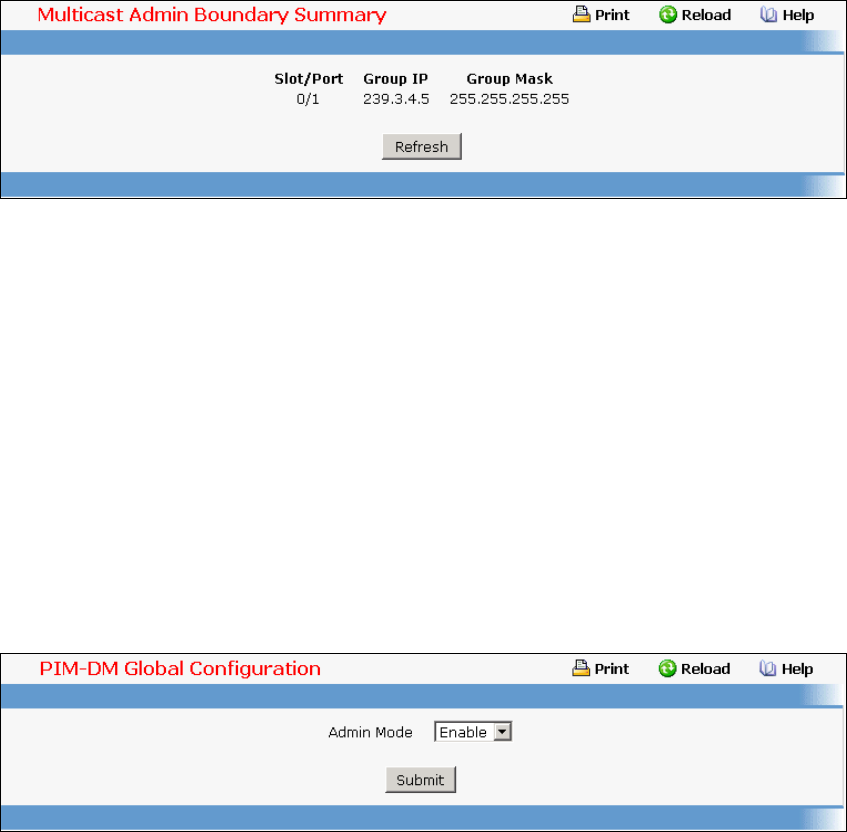

11.8.3.7 Viewing Multicast Admin Boundary Configuration Page
Non-Configurable Data
Slot/Port - The router interface to which the administratively scoped address range is applied.
Group IP - The multicast group address for the start of the range of addresses to be excluded.
Group Mask - The mask that is applied to the multicast group address. The combination of the mask
and the Group IP gives the range of administratively scoped addresses for the selected interface.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the router.
11.8.4 Managing PIM-DM Protocol
11.8.4.1 Configuring PIM-DM Global Admin Configuration Page
Configurable Data
