- 943 -
Source Filter Mode - The source filter mode (Include/Exclude/NA) for the specified group on this
interface.
Source Hosts - This parameter shows source addresses which are members of this multicast
address.
Expiry Time - This parameter shows expiry time interval against each source address which are
members of this multicast group. This is the amount of time after which the specified source entry is
aged out.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the router.

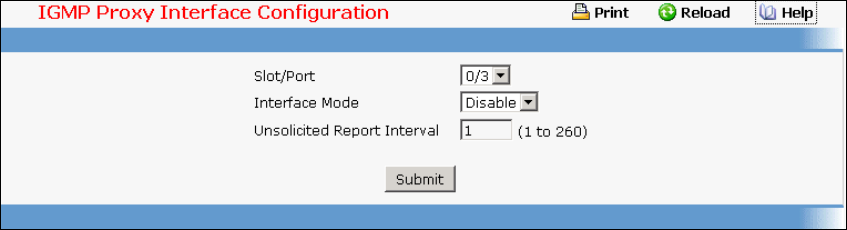

11.8.2.6 Configuring IGMP Proxy Interface Congiuration Page
Selection Criteria
Slot/Port - Select the port for which data is to be displayed or configured from the pulldown menu.
You must have configured at least one router interface before configuring or displaying data for an
IGMP Proxy interface and it should not be a IGMP routing interface. This field is configurable only
when interface mode is disabled.
Configurable Data
Interface Mode - Select enable or disable from the pulldown menu to set the administrative status of
IGMP Proxy on the selected interface. The default is disable. Routing, IGMP and Multicast global
admin modes should be enabled to enable IGMP Proxy interface mode.
Version - Enter the version of IGMP you want to configure on the selected interface. Valid values are
1 to 3 and the default value is 3. This field is configurable only when IGMP Proxy interface mode is
enabled.
Unsolicited Report Interval - Enter the unsolicited time interval value in seconds. The Unsolicited
Report Interval is the time between repetitions of a host's initial report of membership in a group. Valid
values are from 1 to 260. The default value is 1.
Command Buttons
Submit - Send the updated configuration to the router. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is performed.
