Scheduler Type - Specifies the type of scheduling used for this queue.
Scheduler Type can only be one of the following:
• strict
• weighted
Default value is weighted.
Queue Management Type - Queue depth management technique used for queues on this interface.
This is only used if device supports independent settings per-queue.
Queue Management Type can only be:
• taildrop
Default value is taildrop.
Configurable Data
Minimum Bandwidth Allocated - Specifies the sum of individual Minimum Bandwidth values for all
queues in the interface. The sum cannot exceed the defined maximum (100). This value is
considered while configuring the Minimum Bandwidth for a queue in the selected interface.
Minimum Bandwidth - Specifies the minimum guaranteed bandwidth allotted to this queue. Setting
this value higher than its corresponding Maximum Bandwidth automatically increases the maximum
to the same value. Default value is 0. Valid Range is (0 to 100) in increments of 5 . The value 0 means
no guaranteed minimum. Sum of individual Minimum Bandwidth values for all queues in the selected
interface cannot exceed defined maximum (100).
Command Buttons
Restore Defaults for All Queues - Restores default settings for all queues on the selected interface.
Submit - Send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is performed.

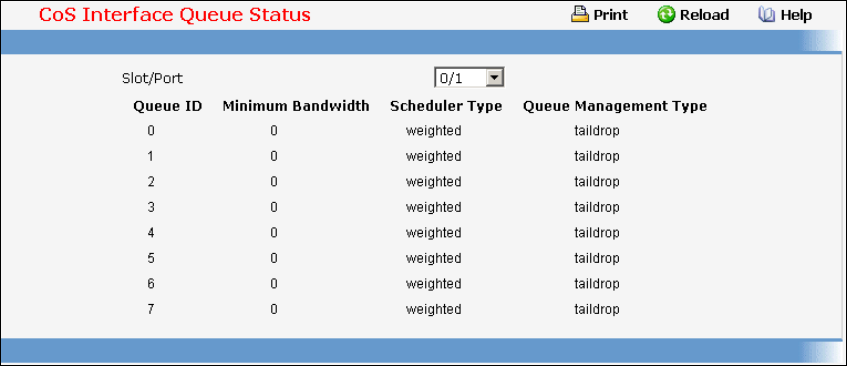

11.7.4.5 Viewing CoS interface queue status
Selection Criteria
Slot/Port - Specifies all CoS configurable interfaces. The option "Global" represents the most recent
global configuration settings. These may be overridden on a per-interface basis.
Non-Configurable Data
Queue ID - Specifies the queueID.
