IP ACL - Specifies list of all IP ACLs. This field is visible only if the user has selected "IP ACL" as "ACL
Type".
IPv6 ACL - Specifies list of all IPv6 ACLs. This field is visible only if the user has selected "IPv6 ACL"
as "ACL Type".
MAC ACL - Specifies list of all MAC ACLs. This field is visible only if the user has selected "MAC
ACL" as "ACL Type".
Sequence Number - An optional sequence number may be specified to indicate the order of this
access list relative to other access lists already assigned to this VLAN and direction. A lower number
indicates higher precedence order. If a sequence number is already in use for this VLAN and
direction, the specified access list replaces the currently attached access list using that sequence
number. If the sequence number is not specified by the user, a sequence number that is one greater
than the highest sequence number currently in use for this VLAN and direction will be used. Valid
range is (1 to 4294967295).
Non-Configurable Data
Slot/Port - Displays selected interface
VLAN ID(s) - Displays selected VLAN Id.
Direction - Displays selected packet filtering direction for ACL.
ACL Type - Displays the type of ACL assigned to selected VLAN and direction.
ACL Identifier - Displays the ACL Number(in case of IP ACL) or ACL Name(in case of IPv6 ACL and
MAC ACL) identifying the ACL assigned to selected VLAN and direction.
Sequence Number - Displays the Sequence Number signifying the order of specified ACL relative to
other ACLs assigned to selected VLAN and direction.
Command Buttons
Submit - Send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is performed.
Remove - Removes the currently selected ACL VLAN Direction Mapping from the switch
configuration.

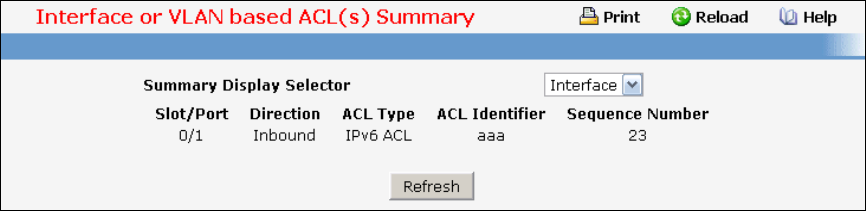

11.7.1.12 Access Control List VLAN ACL Summary Page
Non-Configurable Data
Summary Display Selector - Select interface or VLAN to display summary. By default summary of
Interface-based ACL(s) is displayed.
Slot/Port(s) - The interfaces to which the IP ACL applies.
