Flow Label - Flow label is 20-bit number that is unique to an IPv6 packet, used by end stations to
signify quality-of-service handling in routers. Flow label can specified within the range (0 to 1048575).
IPv6 DSCP Service - Specify the IP DiffServ Code Point (DSCP) field.The DSCP is defined as the
high-order six bits of the Service Type octet in the IPv6 header. This is an optional configuration.
Enter an integer from 0 to 63. The IPv6 DSCP is selected by possibly selection one of the DSCP
keyword from a dropdown box. If a value is to be selected by specifying its numeric value, then select
the 'Other' option in the dropdown box and a text box will appear where the numeric value of the
DSCP can be entered.
Command Buttons
Configure - Configure the corresponding match criteria for the selected rule.
Delete - Remove the currently selected Rule from the selected ACL. These changes will not be
retained across a power cycle unless a save configuration is performed.

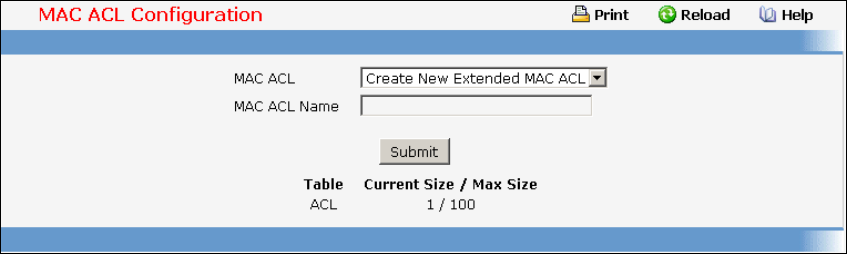

11.7.1.7 Configuring MAC Access Control List Configuration Page
A MAC ACL consists of a set of rules which are matched sequentially against a packet. When a packet
meets the match criteria of a rule, the specified rule action (Permit/Deny) is taken and the additional rules
are not checked for a match. On this menu the interfaces to which an MAC ACL applies must be
specified, as well as whether it applies to inbound or outbound traffic. Rules for the MAC ACL are
specified/created using the MAC ACL Rule Configuration menu.
Selection Criteria
MAC ACL - A new MAC Access Control List may be created or the configuration of an existing MAC
ACL can be updated based on selection.
Configurable Data
MAC ACL Name - Specifies MAC ACL Name string which may include alphabetic, numeric, dash,
underscore or space characters only. The name must start with an alphabetic character. This field
displays the name of the currently selected MAC ACL if the ACL has already been created.
Non-Configurable Data
Table - Displays the current and maximum number of MAC ACLs.
Current Size - The current number of MAC ACLs.
Max Size - The maximum number of MAC ACLs.
Command Buttons
Submit - Send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is performed.
Rename - Renames the currently selected MAC ACL.
