11.6.7.7 Viewing OSPFv3 Neighbor Information Page

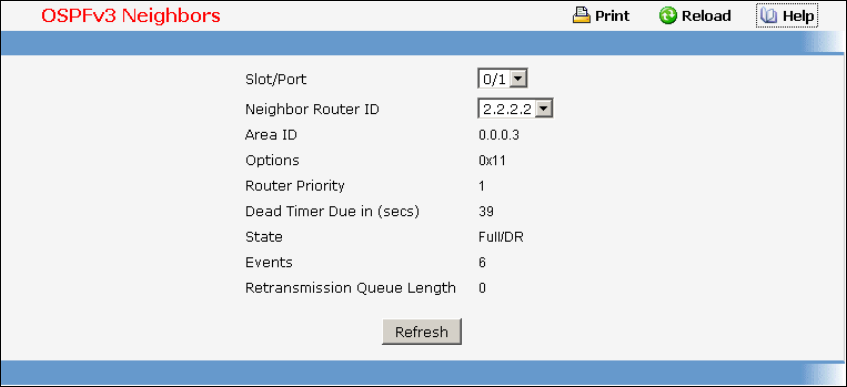

This screen shows the OSPFv3 Neighbor information for a selected neighbor Router ID on the selected
interface. When a particular Neighbor Router ID is selected, it shows detailed information about the
neighbor. This information is displayed only is OSPFv3 is enabled and there is at least one OSPFv3
enabled interface with a valid neighbor present.
Selection Criteria
Slot/Port - Select the Interface for which the data needs to be displayed.
Neighbor Router ID - Selects a specific neighbor router ID on the interface selected in the Slot/Port
selector.
Non-Configurable Data
Area ID - A 32-bit integer in dotted decimal format representing the area common to the neighbor
selected.
Options - A Bit Mask corresponding to the neighbor's options field.
Priority - The priority of this neighbor in the designated router election algorithm. A value of 0 signifies
that the neighbor is not eligible to become the designated router on this particular network.
Dead Timer Due in (secs) - Number of seconds since last Hello was received from Adjacent
Neighbors. Set to 0 for neighbors in a state less than or equal to Init.
State - State of the relationship with this neighbor.
Events - The number of times this neighbor relationship has changed state, or an error has occurred.
Retransmission Queue Length - Length of the selected neighbor's retransmit queue.
Command Buttons
Refresh - Refreshes the page with the latest OSPFv3 neighbor information for the selected interface
and Neighbor Router ID.
