11.6.7 Managing OSPFv3 Protocol

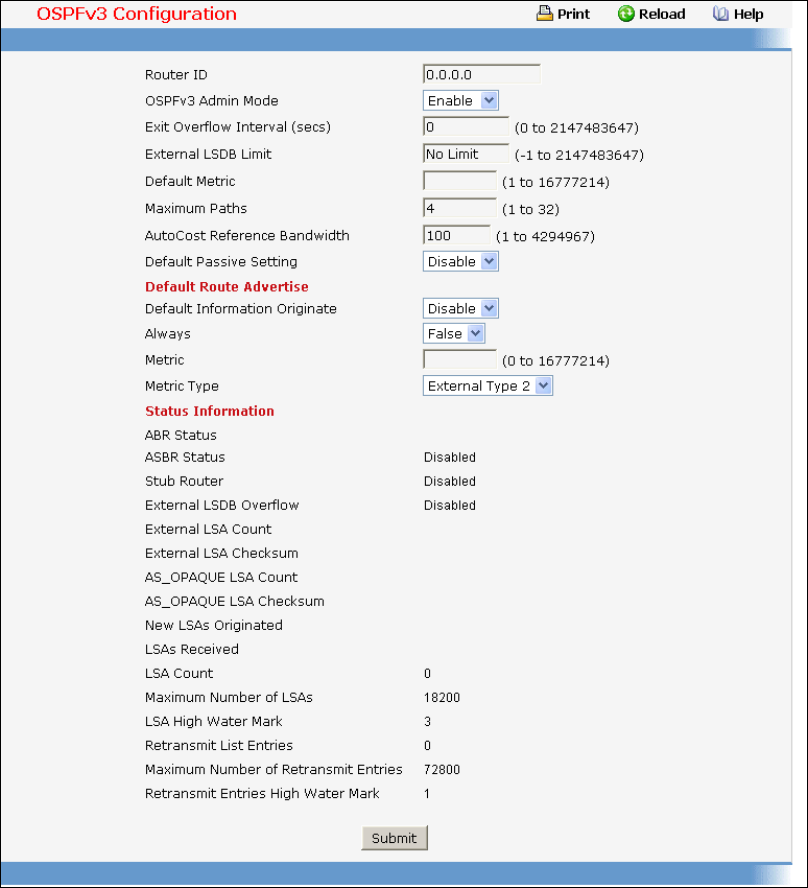

11.6.7.1 Configuring OSPFv3 Configuration Page
Configurable Data
Router ID - The 32 bit integer in dotted decimal format that uniquely identifies the router within the
autonomous system (AS). If you want to change the Router ID you must first disable OSPFv3. After
you set the new Router ID, you must re-enable OSPFv3 to have the change take effect. The default
value is 0.0.0.0, although this is not a valid Router ID.
OSPFv3 Admin Mode* - Select enable or disable from the pull down menu. If you select enable
OSPFv3 will be activated for the switch. The default value is enable. You must configure a Router ID
before OSPFv3 can become operational. This can also be done by issuing the CLI command
router-id, in the ipv6 router ospf mode.
