ICMPv6 Redirect Messages Transmitted - The number of Redirect messages sent.
ICMPv6 Group Membership Query Messages Transmitted - The number of ICMPv6 Group
Membership Query messages sent.
ICMPv6 Group Membership Response Messages Transmitted - The number of ICMPv6 Group
Membership Response messages sent.
ICMPv6 Group Membership Reduction Messages Transmitted - The number of ICMPv6 Group
Membership Reduction messages sent.
ICMPv6 Duplicate Address Detects - The number of duplicate Addresesses detected by the
interface.
Command Buttons
Refresh - Refreshes the screen with most recent data.

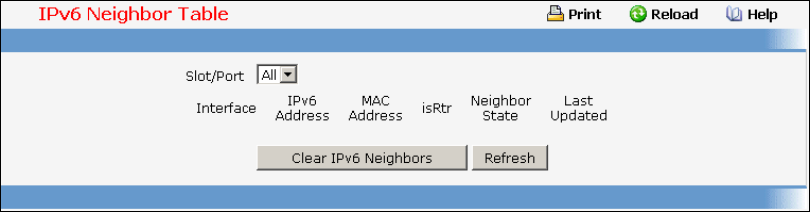

11.6.5 Viewing IPv6 Neighbor Table Information Page
Selection Criteria
Slot/Port - Selects the interface whose information has to be displayed.
Non-Configurable Data
Interface - Specifies the interface whose settings are displayed in the current table row.
IPv6 Address - Specifies the IPv6 address of neighbor or interface.
MAC Address - Specifies MAC address associated with an interface.
IsRtr - Specifies router flag.
Neighbor State - Specifies the state of the neighbor cache entry. Following are the states for
dynamic entries in the IPv6 neighbor discovery cache:
• Incmp - Address resolution is being performed on the entry. A neighbor solicitation message
has been sent to the solicited-node multicast address of the target, but the corresponding
neighbor advertisement message has not yet been received.
• Reach - Positive confirmation was received within the last Reachable Time milliseconds that
the forward path to the neighbor was functioning properly. While in REACH state, the device
takes no special action as packets are sent.
