- 870 -
Selection Criteria
Interface - Selects the interface to be configured. When the selection is changed, a screen refresh
will occur causing all fields to be updated for the newly selected port.
Non-Configurable Data

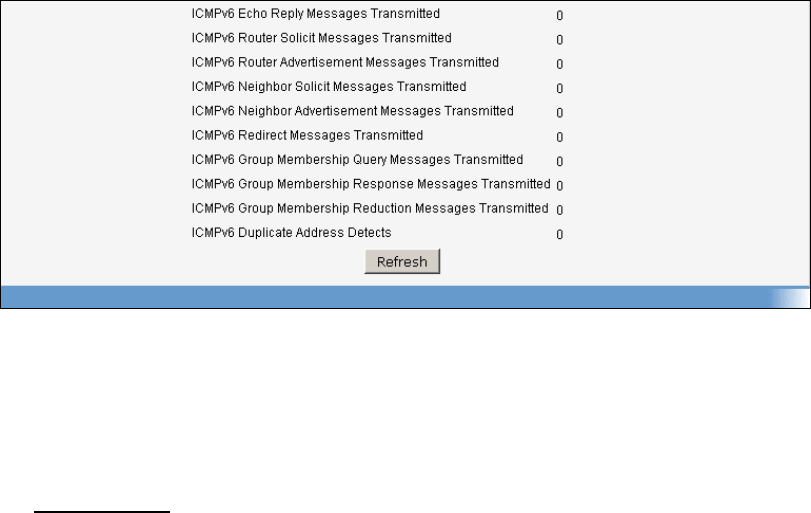

IPv6 Statistics
Total Datagrams Received - The total number of input datagrams received by the interface,
including those received in error.
Received Datagrams Locally Delivered - The total number of datagrams successfully delivered to
IPv6 user-protocols (including ICMP). This counter is incremented at the interface to which these
datagrams were addressed which might not be necessarily the input interface for some of the
datagrams.
Received Datagrams Discarded Due To Header Errors - The number of input datagrams
discarded due to errors in their IPv6 headers, including version number mismatch, other format
errors, hop count exceeded, errors discovered in processing their IPv6 options, etc.
Received Datagrams Discarded Due To MTU - The number of input datagrams that could not be
forwarded because their size exceeded the link MTU of outgoing interface.
Received Datagrams Discarded Due To No Route - The number of input datagrams discarded
because no route could be found to transmit them to their destination.
Received Datagrams With Unknown Protocol - The number of locally-addressed datagrams
received successfully but discarded because of an unknown or unsupported protocol. This counter is
incremented at the interface to which these datagrams were addressed which might not be
necessarily the input interface for some of the datagrams.
Received Datagrams Discarded Due To Invalid Address - The number of input datagrams
discarded because the IPv6 address in their IPv6 header's destination field was not a valid address to
be received at this entity. This count includes invalid addresses (e.g., ::0) and unsupported
addresses(e.g., addresses with unallocated prefixes). For entities which are not IPv6 routers and
therefore do not forward datagrams, this counter includes datagrams discarded because the
destination address was not a local address.
Received Datagrams Discarded Dut To Truncated Data - The number of input datagrams
discarded because datagram frame didn't carry enough data.
Received Datagrams Discarded Other - The number of input IPv6 datagrams for which no
problems were encountered to prevent their continued processing, but which were discarded (e.g., for
lack of buffer space). Note that this counter does not include any datagrams discarded while awaiting
re-assembly.
Received Datagrams Reassembly Required - The number of IPv6 fragments received which
needed to be reassembled at this interface. Note that this counter is incremented at the interface to
