- 838 -
Zero Priority Packets Received - The total number of VRRP packets received by the virtual router
with a priority of '0'.
Zero Priority Packets Sent - The total number of VRRP packets sent by the virtual router with a
priority of '0'.
Invalid Type Packets Received - The number of VRRP packets received by the virtual router with an
invalid value in the 'type' field.
Address List Errors - The total number of packets received for which the address list does not match
the locally configured list for the virtual router.
Invalid Authentication Type - The total number of packets received with an unknown authentication
type.
Authentication Type Mismatch - The total number of packets received with an authentication type
different to the locally configured authentication method.
Packet Length Errors - The total number of packets received with a packet length less than the
length of the VRRP header.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
11.4.10 Managing Tunnels

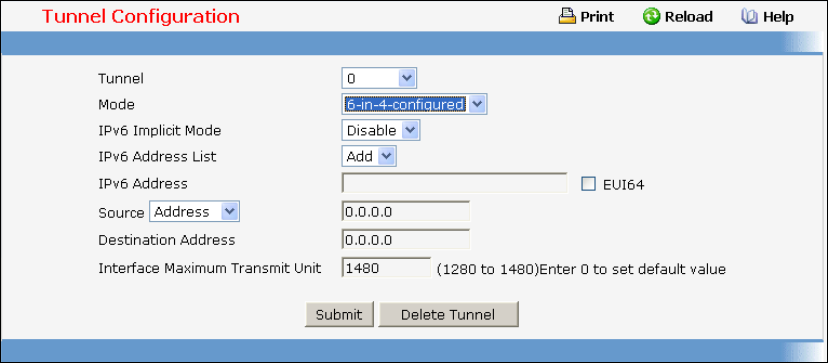

11.4.10.1 Configuring Tunnels Configuration Page
Tunnels can be created, configured and deleted from this page.
Configurable Data
Tunnel - Select list of currently configured tunnel interfaces. Create is also a valid choice if the
maximum number of tunnel interfaces has not been created.
Tunnel ID - When 'Create' is chosen from the tunnel selector this list of available tunnel ID's becomes
visible.
