Enable violation traps- Enables or disables the sending of new violation traps designating when a
packet with a disallowed MAC address is received on a locked port.
Enable violation Shutdown- Enables or disables the Port Security Violation Shutdown mode for the
selected interface.
Configurable Data
Maximum Number of Dynamically Learned MAC Addresses Allowed
- Sets the maximum
number of dynamically learned MAC addresses on the selected interface.
Add a static MAC address- Adds a MAC address to the list of statically locked MAC addresses for
the selected interface.
VLAN ID- Adds a corresponding VLAN ID for the MAC Address being added to the list of statically
locked MAC addresses for the selected interface.
Maximum Number of Statically Locked MAC Addresses Allowed - Sets the maximum number of
statically locked MAC addresses on the selected interface.
Command Buttons
Clear - Clears the Dynamic MAC addresses of the selected interface.
Move - Convert a dynamically locked MAC address to a statically locked address. The Dynamic MAC
address entries are converted to Static MAC address entries in a numerically ascending order till the
Static limit is reached.
Submit - Applies the new configuration and causes the changes to take effect. These changes will
not be retained across a power cycle unless a save configuration is performed.

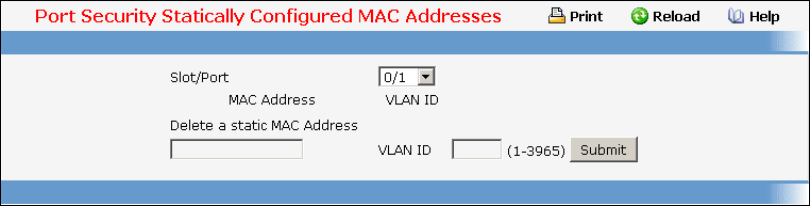

11.3.21.3 Deleting Port Security Statically Configured MAC Address Page
Selection Criteria
Slot/Port - Select the physical interface for which you want to display data.
Configurable data
Delete a Static MAC Address - Accepts user input for the MAC address to be deleted.
VLAN ID - Accepts user input for the VLAN ID corresponding to the MAC address being deleted.
Non-configurable data
MAC Address - Displays the user specified statically locked MAC address.
VLAN ID - Displays the VLAN ID corresponding to the MAC address to be deleted from the Static list
Command Buttons
Submit - Applies the new configuration and causes the changes to take effect. These changes will
not be retained across a power cycle unless a save configuration is performed.
