Configurable Data

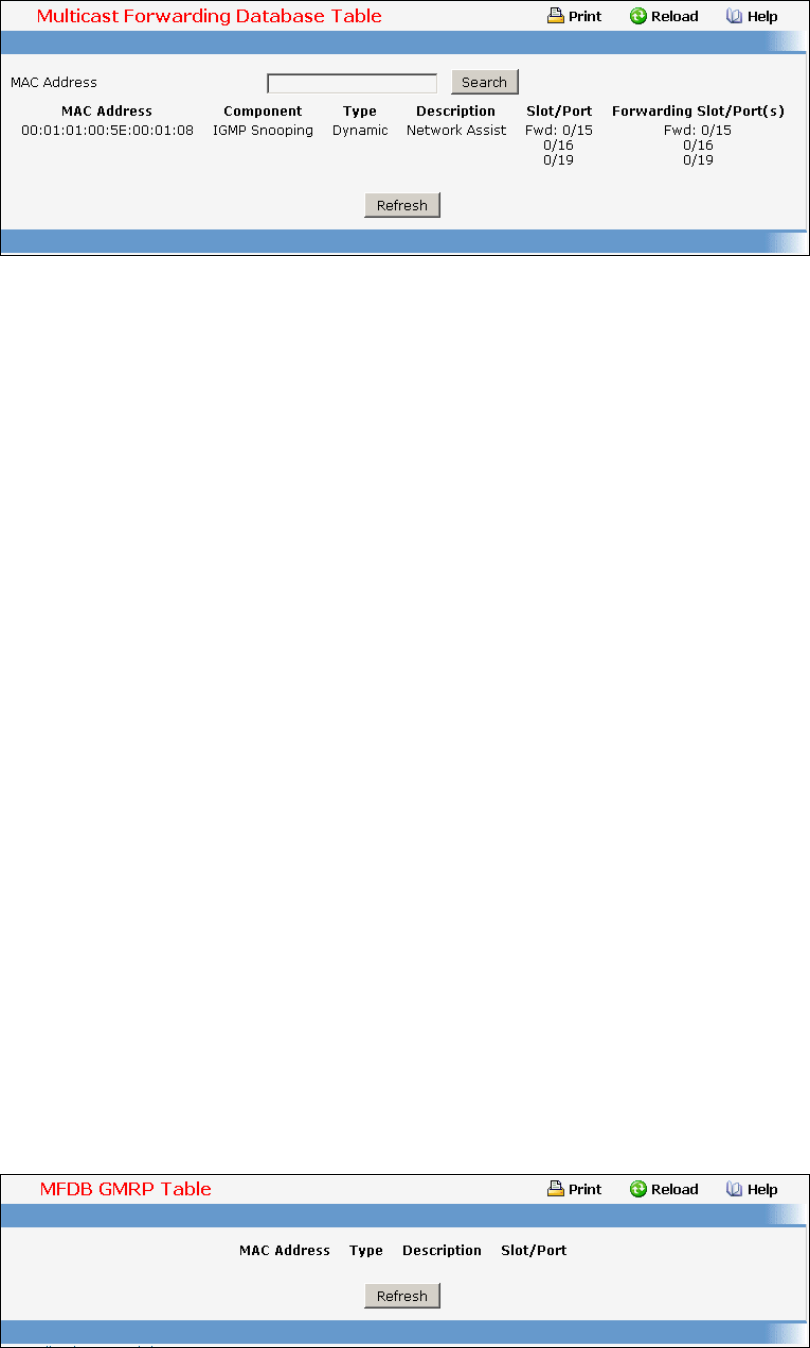

MAC Address - Enter the VLAN ID - MAC Address pair whose MFDB table entry you want displayed.
Enter eight two-digit hexadecimal numbers separated by colons, for example
00:01:23:43:45:67:89:AB. The first two two-digit hexadecimal numbers are the VLAN ID and the
remaining numbers are the MAC address. Then click on the "Search" button. If the address exists,
that entry will be displayed. An exact match is required.
Non-Configurable Data
MAC Address - The multicast MAC address for which you requested data.
Component - This is the component that is responsible for this entry in the Multicast Forwarding
Database. Possible values are IGMP Snooping, GMRP, and Static Filtering.
Type - This displays the type of the entry. Static entries are those that are configured by the end user.
Dynamic entries are added to the table as a result of a learning process or protocol.
Description - The text description of this multicast table entry. Possible values are Management
Configured, Network Configured, and Network Assisted.
Slot/Port(s) - The list of interfaces that are designated for forwarding (Fwd:) and filtering (Flt:) for the
selected address.
Forwarding Slot/Port(s) - The resultant forwarding list is derived from combining all the forwarding
interfaces and removing the interfaces that are listed as the static filtering interfaces.
Command Buttons
Search - Search MFDB table entry by VLAN ID - MAC Address pair.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
11.3.18.2 Viewing GMRP MFDB Table Page
This screen will display all of the entries in the Multicast Forwarding Database that were created for the
GARP Multicast Registration Protocol.
