• Source and destination MAC address - Sets the mode on the source and destination MAC
addresses.
• Source IP address - Sets the mode on the source IP address.
• Destination IP address - Sets the mode on the destination IP address.
• Source and destination IP address - Sets the mode on the source and destination IP
addresses.
Participation - For each port specify whether it is to be included as a member of this Port Channel or
not. The default is excluded. There can be a maximum of 8 ports assigned to a Port Channel.
Configurable Data
Port Channel Name - Enter the name you want assigned to the Port Channel. You may enter any
string of up to 15 alphanumeric characters. A valid name has to be specified in order to create the Port
Channel.
Non-Configurable Data
Slot/Port - Slot/Port identification of the Port Channel being configured. This field will not appear
when a new Port Channel is being created.
Link Status - Indicates whether the Link is up or down.
Port Channel Members - List of members of the Port Channel in Slot/Port form.
Membership Conflicts - Shows ports that are already members of other Port Channels. A port may
only be a member of one Port Channel at a time. If the entry is blank, it is not currently a member of
any Port Channel.
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain the new
values across a power cycle, you must perform a save.
Delete - Removes the currently selected configured Port Channel. All ports that were members of this
Port Channel are removed from the Port Channel and included in the default VLAN. This field will not
appear when a new Port Channel is being created. Refresh - Refresh the data on the screen with the
present state of the data in the switch.

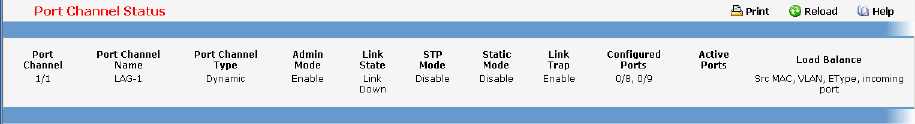

11.3.17.2 Viewing Port-Channel Information Page
Non-Configurable Data
Port Channel - The Slot/Port identification of the Port Channel.
Port Channel Name - The name of the Port Channel.
