11.3.16 Managing MLD Snooping Querier

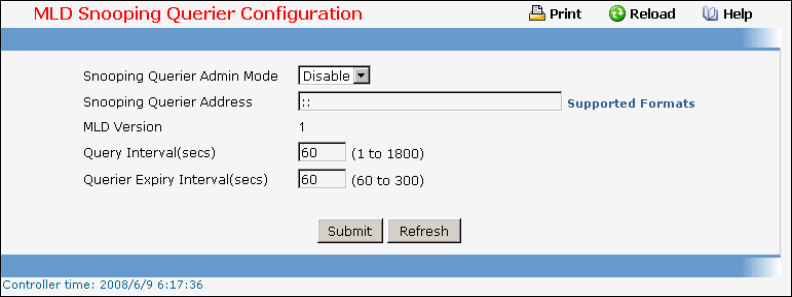

11.3.16.1 Configuring MLD Snooping Querier Configuration Page
Use this menu to configure the parameters for MLD Snooping Querier, Note that only a user with
Read/Write access privileges may change the data on this screen.
Selection Criteria
Snooping Querier Admin Mode - Select the administrative mode for MLD Snooping for the switch
from the pulldown menu. The default is disable.
Configurable Data
Snooping Querier Address - Specify the Snooping Querier Address to be used as source address
in periodic MLD queries. This address is used when no address is configured on the VLAN on which
query is being sent.
MLD Version - Specify the MLD protocol version used in periodic MLD queries. MLD queries.
Query Interval - Specify the time interval in seconds between periodic queries sent by the snooping
querier. The Query Interval must be a value in the range of 1 and 1800. The default value is 60.
Querier Expiry Interval - Specify the time interval in seconds after which the last querier information
is removed. The Querier Expiry Interval must be a value in the range of 60 and 300. The default value
is 60.
Configurable Data
Submit - Update the switch with the configured values.
Refresh - Reload the information on the page.
11.3.16.2 Configuring MLD Snooping VLAN Configuration Page
