Selection Criteria
Admin Mode - Select the administrative mode for MLD Snooping for the switch from the pulldown
menu. The default is disable.
Non-Configurable Data
Multicast Control Frame Count - The number of multicast control frames that are processed by the
CPU.
Interfaces Enabled for MLD Snooping - A list of all the interfaces currently enabled for MLD
Snooping.
Data Frames Forwarded by the CPU - The number of data frames forwarded by the CPU.
VLAN Ids Enabled For MLD Snooping - Displays VLAN Ids enabled for MLD snooping.
Command Buttons
Submit - Update the switch with the values you entered. If you want the switch to retain the new
values across a power cycle you must perform a save. You will only see this button if you have
Read/Write access privileges.

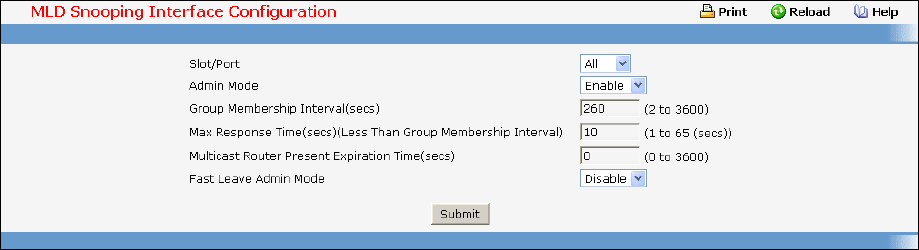

11.3.15.2 Configuring MLD Snooping Interface Configuration Page
Selection Criteria
Slot/Port - The single select box lists all physical ,VLAN and LAG interfaces. Select the interface you
want to configure.
Admin Mode - Select the interface mode for the selected interface for MLD Snooping for the switch
from the pulldown menu. The default is disable.
Fast Leave Admin mode - Select the Fast Leave mode for the a particular interface from the
pulldown menu. The default is disable.
Configurable Data
Group Membership Interval - Specify the amount of time you want the switch to wait for a report for
a particular group on a particular interface before it deletes that interface from the group. The valid
range is from (2 to 3600) seconds. The configured value must be greater than Max Response Time.
The default is 260 seconds.
Max Response Time - Specify the amount of time you want the switch to wait after sending a query
on an interface because it did not receive a report for a particular group on that interface. Enter a
value greater or equal to 1 and less than the Group Membership Interval in seconds. The default is 10
seconds. The configured value must be less than the Group Membership Interval.
