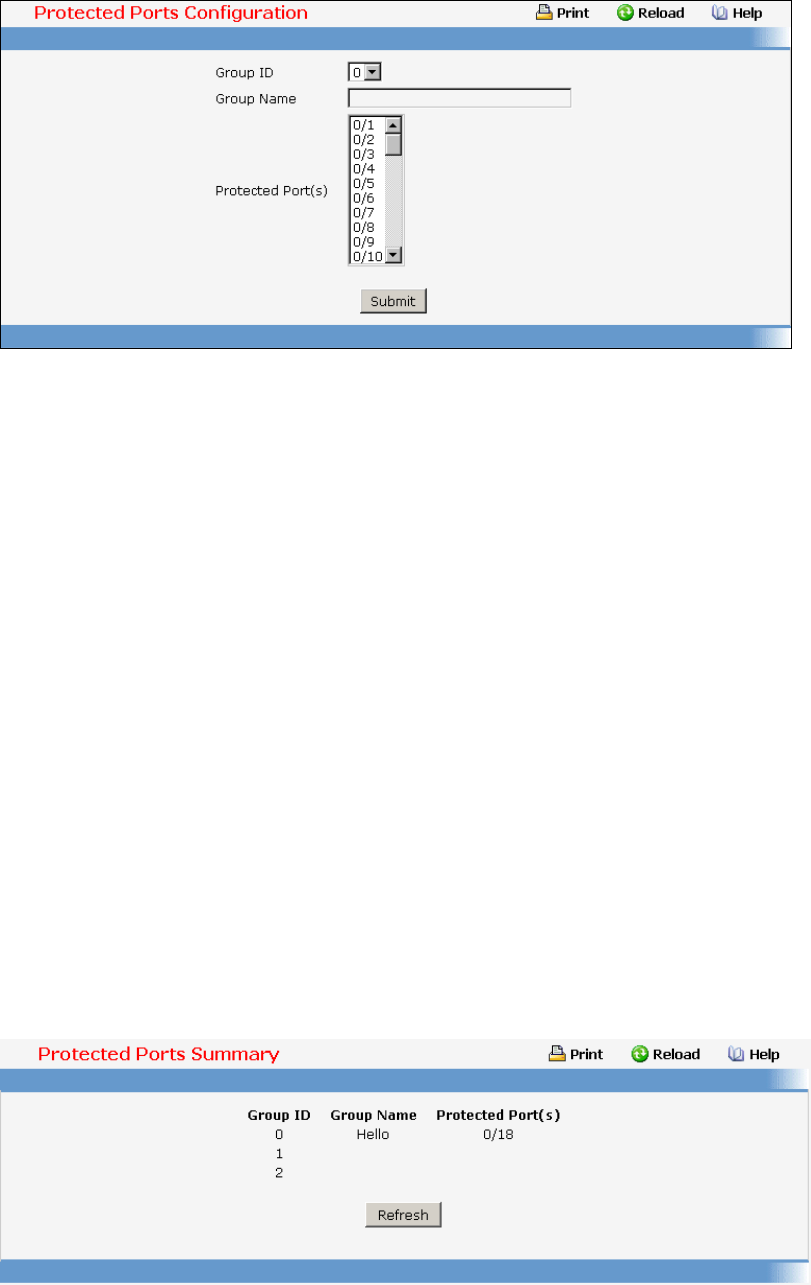

Selection Criteria
Group ID - The protected ports can be combined into a logical group. Traffic can flow between
protected ports belonging to different groups, but not within the same group. The selection box lists all
the possible protected port Group IDs supported for the current platform. The valid range of the Group
ID is (0 to 2) .
Configurable Data
Group Name - It is a name associated with the protected ports group used for identification purposes.
It can be up to 32 alphanumeric characters long, including blanks. The default is blank. This field is
optional.
Protected Ports - The selection list consists of physical ports, protected as well as unprotected. The
protected ports are highlighted to differentiate between them. No traffic forwarding is possible
between two protected ports. If left unconfigured, the default state is unprotected.
Command Buttons
Submit - Update the switch with the values entered. For the switch to retain new values across a
power cycle, a save operation is a must.
11.3.6.2 Protected Ports Summary Page
Non-Configurable Data
