VLAN ID - The VLAN Identifier (VID) of the VLAN. The range of the VLAN ID is (1 to 3965).
VLAN Name - The name of the VLAN. VLAN ID 1 is always named `Default`.
VLAN Type - The VLAN type:
Default ( VLAN ID = 1) -- always present
Static -- a VLAN you have configured
Dynamic -- a VLAN created by GVRP registration that you have not converted to static, and that
GVRP may therefore remove.

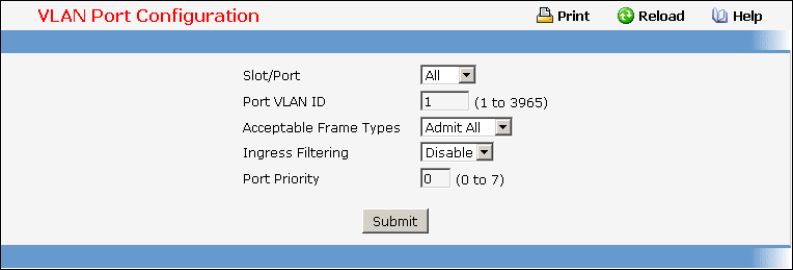

11.3.5.3 Configuring VLAN Port Configuration Page
Selection Criteria
Slot/Port - Select the physical interface for which you want to display or configure data. Select 'All' to
set the parameters for all ports to same values.
Acceptable Frame Types - Specify how you want the port to handle untagged and priority tagged
frames. If you select 'VLAN only', the port will discard any untagged or priority tagged frames it
receives. If you select 'Admit All', untagged and priority tagged frames received on the port will be
accepted and assigned the value of the Port VLAN ID for this port. Whichever you select, VLAN
tagged frames will be forwarded in accordance with the IEEE 802.1Q VLAN standard. The factory
default is 'Admit All'.
Ingress Filtering - Specify how you want the port to handle tagged frames. If you enable Ingress
Filtering on the pull down menu, a tagged frame will be discarded if this port is not a member of the
VLAN identified by the VLAN ID in the tag. If you select disable from the pull down menu, all tagged
frames will be accepted. The factory default is disabled.
Configurable Data
Port VLAN ID - Specify the VLAN ID you want assigned to untagged or priority tagged frames
received on this port. The factory default is 1.
Port Priority - Specify the default 802.1p priority assigned to untagged packets arriving at the port.
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain the new
values across a power cycle, you must perform a save.
