- 708 -
Participation - Use this field to specify whether a port will participate in this VLAN. The factory default
is 'Autodetect'. The possible values are:
• Include - This port is always a member of this VLAN. This is equivalent to registration fixed in
the IEEE 802.1Q standard.
• Exclude - This port is never a member of this VLAN. This is equivalent to registration
forbidden in the IEEE 802.1Q standard.
• Autodetect - Specifies that port may be dynamically registered in this VLAN via GVRP. The
port will not participate in this VLAN unless it receives a GVRP request. This is equivalent to
registration normal in the IEEE 802.1Q standard.
Tagging - Select the tagging behavior for this port in this VLAN. The factory default is 'Untagged'. The
possible values are:
• Tagged - all frames transmitted for this VLAN will be tagged.
• Untagged - all frames transmitted for this VLAN will be untagged.
Configurable Data
VLAN ID - Specify the VLAN Identifier for the new VLAN. (You can only enter data in this field when
you are creating a new VLAN.) The range of the VLAN ID is (1 to 3965).
VLAN Name - Use this optional field to specify a name for the VLAN. It can be up to 32 alphanumeric
characters, including blanks. The default is blank. VLAN ID 1 always has a name of 'Default'.
VLAN Type - This field identifies the type of the VLAN you are configuring. You cannot change the
type of the default VLAN (VLAN ID = 1): it is always type 'Default'. When you create a VLAN, using
this screen, its type will always be 'Static'. A VLAN that is created by GVRP registration initially has a
type of 'Dynamic'. You may use this pull down menu to change its type to 'Static'.
Non-Configurable Data
Slot/Port - Indicates which port is associated with the fields on this line.
Status - Indicates the current value of the participation parameter for the port.
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain the new
values across a power cycle, you must perform a save.
Delete - Delete this VLAN. You are not allowed to delete the default VLAN.

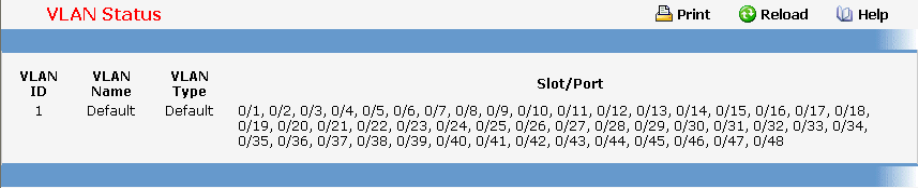

11.3.5.2 Viewing Port-based VLAN Information Page
This page displays the status of all currently configured VLANs.
Non-Configurable Data
