Submit - This is used to delete the entries selected using checkbox under Remove field.
Refresh - Refresh the data on the screen with the present state of the data in the switch.

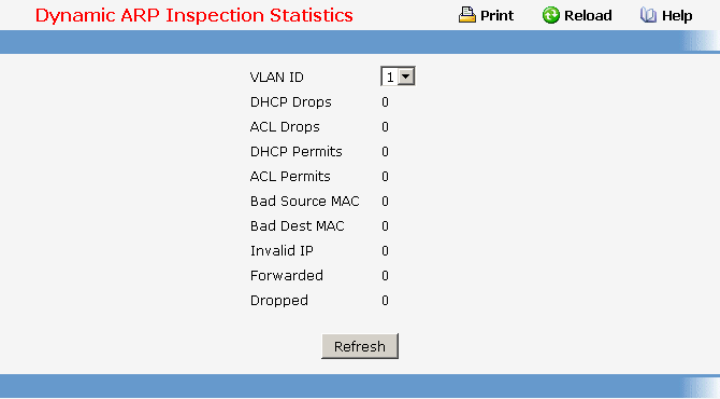

11.3.3.6 Configuring DAI Statistics Page
Selection Criteria
VLAN ID - Select the DAI enabled VLAN ID for which statistics to be displayed.
Non-Configurable Data
DHCP Drops - Number of ARP packets that were dropped by DAI as there is no matching DHCP
Snooping binding entry found.
ACL Drops - Number of ARP packets that were dropped by DAI as there is no matching ARP ACL
rule found for this VLAN and the static flag is set on this VLAN.
DHCP Permits - Number of ARP packets that were forwarded by DAI as there is a matching DHCP
Snooping binding entry found.
ACL Permits - Number of ARP packets that were permitted by DAI as there is a matching ARP ACL
rule found for this VLAN.
Bad Source MAC - Number of ARP packets that were dropped by DAI as the sender MAC address in
ARP packet didn't match the source MAC in ethernet header.
Bad Dest MAC - Number of ARP packets that were dropped by DAI as the target MAC address in
ARP reply packet didn't match the destination MAC in ethernet header.
Invalid IP - Number of ARP packets that were dropped by DAI as the sender IP address in ARP
packet or target IP address in ARP reply packet is invalid. Invalid addresses include 0.0.0.0,
255.255.255.255, IP multicast addresses, class E addresses (240.0.0.0/4), loopback addresses
(127.0.0.0/8).
Forwarded - Number of valid ARP packets forwarded by DAI.
Dropped - Number of invalid ARP packets dropped by DAI.
