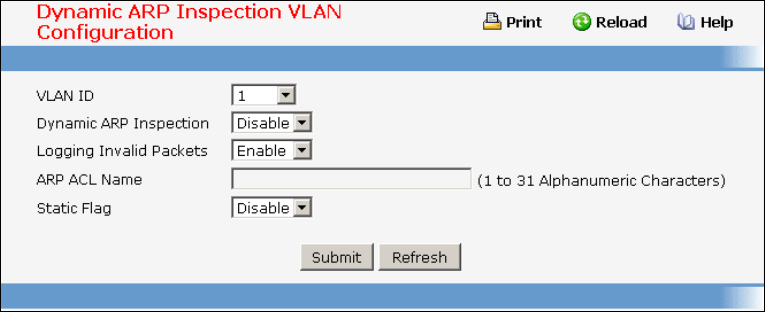

11.3.3.2 Configuring DAI VLAN Configuration Page
Selection Criteria
VLAN List - Select the DAI Capable VLANs for which information has to be displayed or configured.
Configurable Data
Dynamic ARP Inspection - Indicates whether the Dynamic ARP Inspection is enabled on this VLAN.
If this object is set to 'Enable' Dynamic ARP Inspection is enabled. If this object is set to 'Disable',
Dynamic ARP Inspection is disabled.
Logging Invalid Packets - Indicates whether the Dynamic ARP Inspection logging is enabled on this
VLAN. If this object is set to 'Enable' it will log the Invalid ARP Packets information. If this object is set
to 'Disable', Dynamic ARP Inspection logging is disabled.
ARP ACL Name - Name of ARP Access list. A vlan can be configured to use this ARP ACL
containing rules as the filter for ARP packet validation. The name can contain up to <1-31>
alphanumeric characters.
Static Flag - This flag is used to determine whether the ARP packet needs validation using the DHCP
snooping database in case ARP ACL rules don't match. If the flag is enabled then the ARP Packet will
be validated by the ARP ACL Rules only. If the flag is disabled then the ARP Packet needs further
validation by using the DHCP Snooping entries. The factory default is disable.
Command Buttons
Submit - Update the switch with the values you entered.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
11.3.3.3 Configuring DAI Interface Configuration Page
