- 696 -

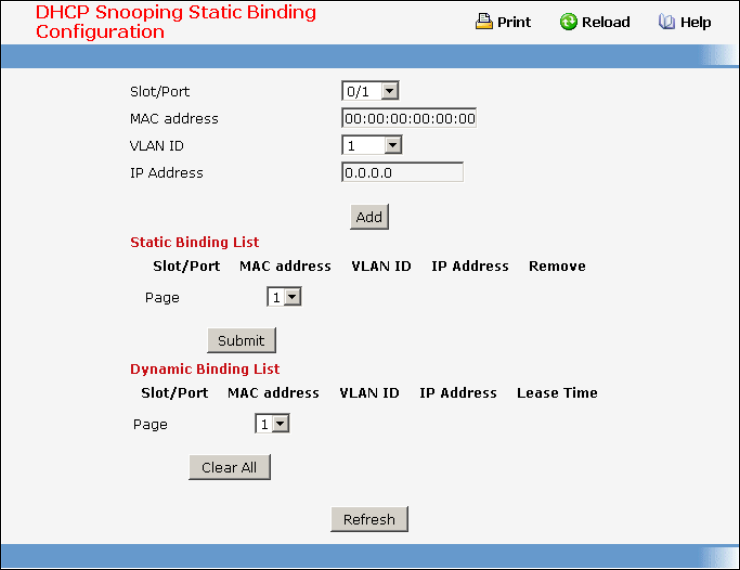

Configurable Data
Slot/Port - Selects the interface to add a binding into the DHCP snooping database.
MAC Address - Specify the MAC address for the binding to be added. This is the Key to the binding
database.
VLAN ID - Selects the VLAN from the list for the binding rule. The range of the VLAN ID is (1 to 3965).
IP Address - Specify valid IP Address for the binding rule.
Non-configurable data
Static Binding List - Lists all the DHCP snooping static binding entries page by page. Ex: Page 1
displays first 15 available static entries. Page 2 displays Next 15 available static entries.
• Slot/Port - Interface
• MAC Address - MAC address
• VLAN ID - VLAN ID
• IP Address - IP address
• Remove - This is to be selected to remove the particular binding entry.
• Page - Lists the Number of Pages the static binding entries occupied. Select the Page
Number from this list to display the particular Page entries.
Dynamic Binding List - Lists all the DHCP snooping dynamic binding entries page by page. Ex:
Page 1 displays first available up to 15 dynamic entries. Page 2 displays Next available up to 15
dynamic entries.
• Slot/Port - Interface
• MAC Address - MAC address
• VLAN ID - VLAN ID
• IP Address - IP address
