Protocol - Select IPv4 or IPv6 to configure the corresponding attributes.
Name Server - Specifies all the existing domain name servers along with an additional option
"Create". When the user selects "Create" another text box "IP Address" appears where the user may
enter domain name server to be configured.
Configurable Data
IP Address - Specifies the address of the domain name server.
Non-Configurable Data
Request - Specifies the number of DNS requests since last agent reboots.
Response - Specifies the number of DNS Server responses since last agent reboots.
Command Buttons
Submit - Sends the updated configuration to the switch. Configuration changes take effect
immediately.
Delete - Deletes the domain name server entry. Sends the updated configuration to the switch.
Configuration changes take effect immediately.
Delete All - Deletes all the domain name server entries. Sends the updated configuration to the
switch. Configuration changes take effect immediately.
Clear All Counter - Cleans all the name server counters.
11.2.15.4 Configuring DNS Cache Summary Page

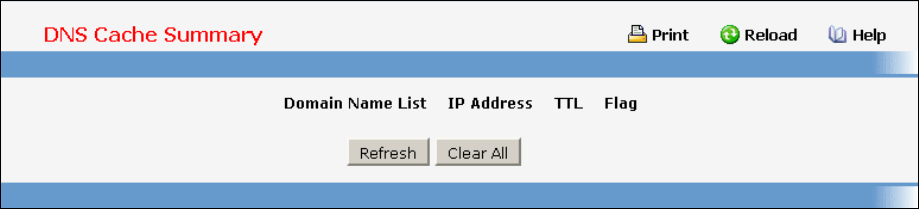

The Domain Name System (DNS) dynamically maps domain name to Internet (IP) addresses. This panel
displays the current contents of the DNS cache.
Non-Configurable Data
Domain Name List - The domain name associated with this record.
IP address - The IP address associated with this record.
TTL - The time to live reported by the name server.
Flag - The flag of the record.
Command Buttons
Refresh - Refresh the page with the latest DNS cache entries.
Clear All - Clear all entries in the DNS cache.
