Direction
• before-utc - Sets the local time zone before (east) of UTC
• after-utc - Sets the local time zone after (west) of UTC
Configurable Data
Time Zone Name - The name of time zone, usually an acronym. (Range: 1-15 characters).
Time Zone Hours - The number of hours before/after UTC. (Range: 0-12 hours).
Time Zone Minutes - The number of minutes before/after UTC. (Range: 0-59 minutes).
• before-utc - Sets the local time zone before (east) of UTC
• after-utc - Sets the local time zone after (west) of UTC
Command Buttons
Submit - Send the updated screen to the switch. Changes take effect on the switch but these
changes will not be retained across a power cycle unless a save is performed.
11.2.14 Defining DHCP Client
11.2.14.1 Configuring DHCP Restart Page

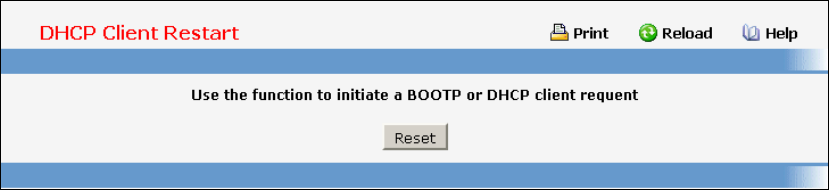

This command issues a BOOTP or DHCP client request for any IP interface that has been set to BOOTP
or DHCP mode via the IP address command. DHCP requires the server to reassign the client's last
address if available. If the BOOTP or DHCP server has been moved to a different domain, the network
portion of the address provided to the client will be based on this new domain.
Command Buttons
Reset - Send the updated screen to the switch to restart the DHCP client.
11.2.14.1.1 Configurating DHCPv6 Restart Page
This command issues a DHCP6 client request for any IP interface that has been set to DHCP mode via
the ip address command. DHCP requires the server to reassign the client's last address if available. If the
DHCP server has been moved to a different domain, the network portion of the address provided to the
client will be based on this new domain.
