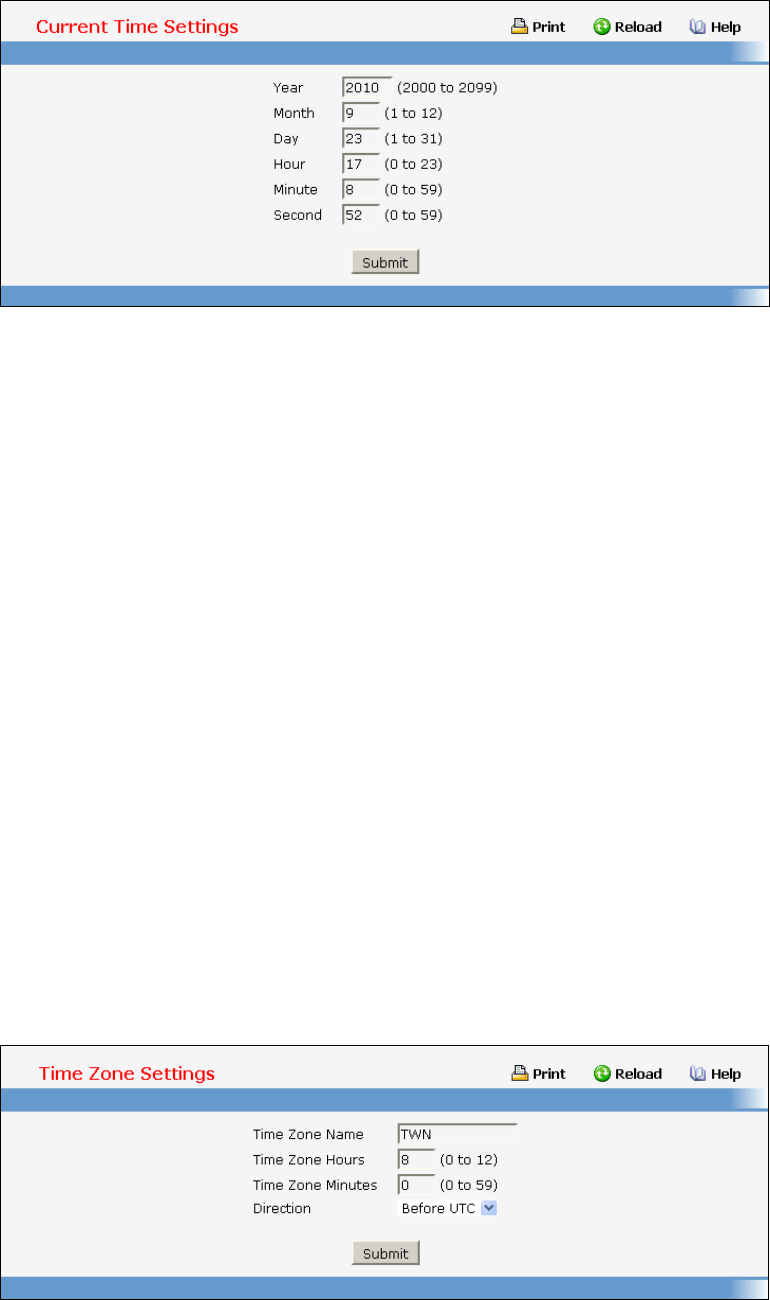

Configurable Data
Year - Year (4-digit). (Range: 2000 - 2099).
Month - Month. (Range: 1 - 12).
Day - Day of month. (Range: 1 - 31).
Hour - Hour in 24-hour format. (Range: 0 - 23).
Minute - Minute. (Range: 0 - 59).
Second - Second. (Range: 0 - 59).
Command Buttons
Submit - Send the updated screen to the switch. Changes take effect on the switch but these
changes will not be retained across a power cycle unless a save is performed.
11.2.13.6 Configuring Time Zone Settings Page
Simple Network Time Protocol (SNTP) allows the switch to set its internal clock based on periodic
updates from a time server. Maintaining an accurate time on the switch enables the system log to record
meaningful dates and times for event entries. You can also manually set the clock using the CLI. If the
clock is not set, the switch will only record the time from the factory default set at the last bootup.
Selection Criteria
